STOCK LIST

CODE NO. WT-452GD OF USED 10M3 GRAB DREDGER & PUSH BOAT OF 1100PS (550PS X 2 ENGINES)


CODE NO. WT-452GD OF USED 10M3 GRAB DREDGER WITH A PUSH BOAT OF 1100PS (550PS X 2 ENGINES).

*10M3 GRAB DREDGER  M/V. TAISHO GO NO.8.
L.B.D: 44.5M X 18.0M X 3.0M (DRAFT: 1.6M).
SHIP'S BUILDER: DAIOU ZOKI CO., LTD. JAPAN (MADE IN DECEMBER 1992)
SPUD: 1100MM DIAMETER X 25 METERS LONG X 2 SETS.
SIDE THRUSTER: MODEL TFA-35DHN (3000KG/F.).
MAIN GENERATOR: 150KVA/220V X 2 UNITS & 60KVA/220V X 1 UNIT.
WINCH: HYDRAULIC WINCH 10 TONS X 4 UNITS.
CRANE MAKER AND MODEL: SKK-15010GDT-F.
ENGINE MAKER OF CRANE: "MITSUBISHI" MODEL S12-N-MPTA (1310PS/1800RPM).
SLEWING SPEED: 1.5RPM.
HOISTING SPEED: 55M/MIN.
REWIDING SPEED: 80M/MIN.
GRAB BUCKET: 10M3 (MEDIUM HEAVY WEIGHT 30 TONS) X 1 PIECE.
GRAB BUCKET: 5.5M3 (ULTRA HEAVY DUTY WEIGHT 35 TONS) FOR THE HARD SEA BOTTOM.
DEPTH OF DREDGING: 45 METERS (BELOW WATER LEVEL)  *6 METERS (ABOVE WATER LEVEL).
WORKING RADIUS: 55 DEGREE `@70 DEGREE (11.9 METERS ` 17.0 METERS)
CARRY OUT CONTROL SYSTEM: REAL TIME KINEMATICS (RTK) - GPS.
MODEL OF MULTI BEAM SONAR: MODEL BPS-20U.

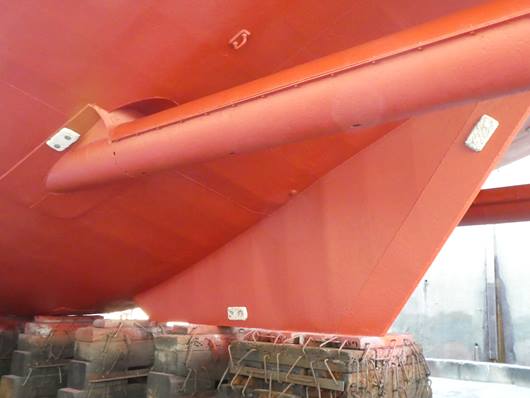

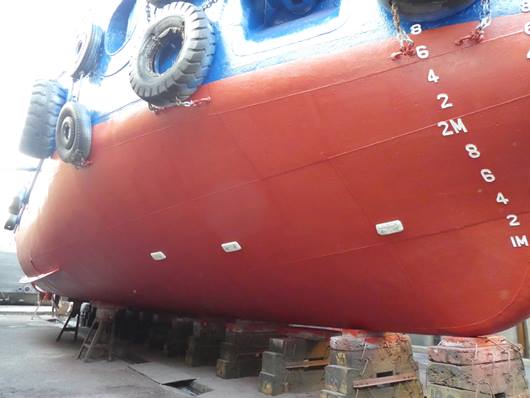

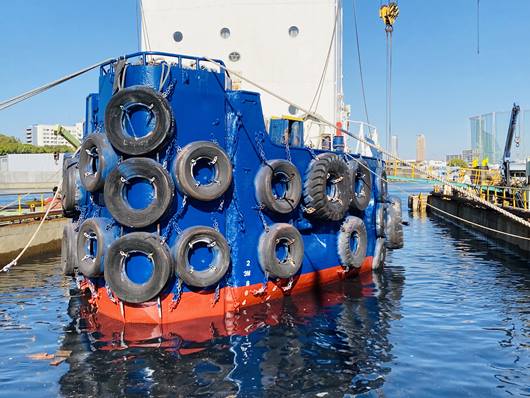

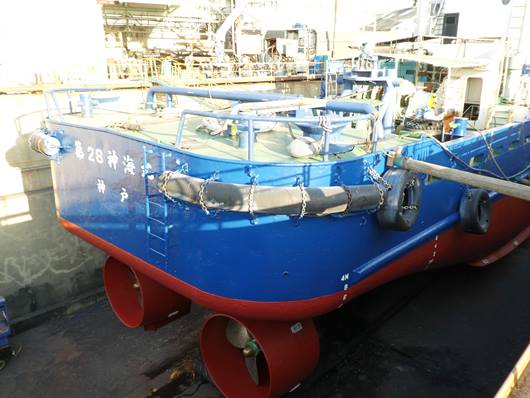

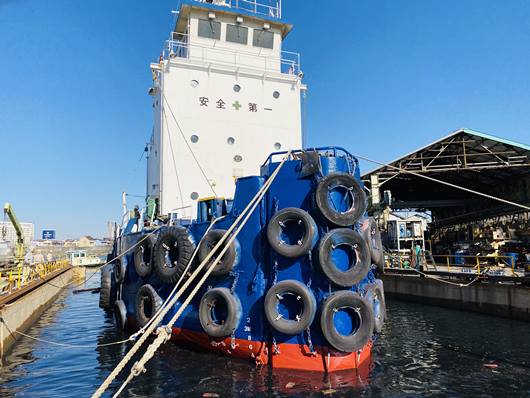

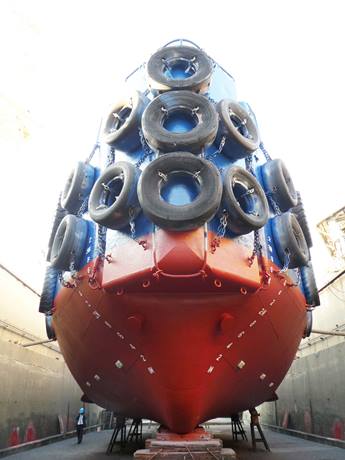

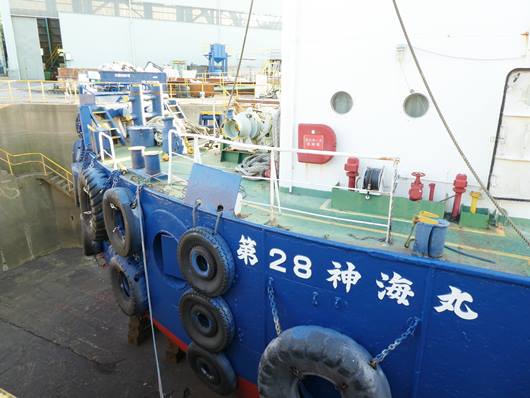

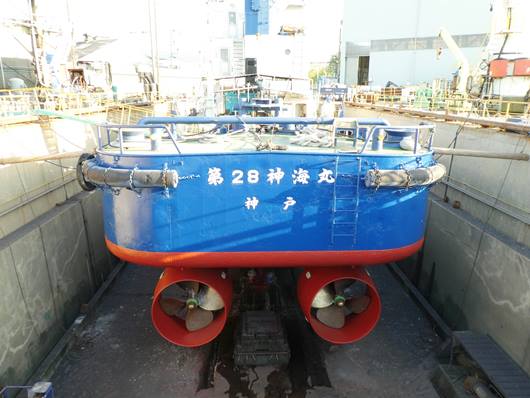

*PUSH BOAT OF 1100PS (550PS X 2 ENGINES)* M/V. TAISHO MARU NO.10
L.B.D.: 13.80M X 5.32M X 1.81M. (DRAFT: 1.4M).
SHIP'S BUILDER: SHIOTSUKA SHIPBUILDING CO., LTD. JAPAN (MADE IN AUGUST 1995)

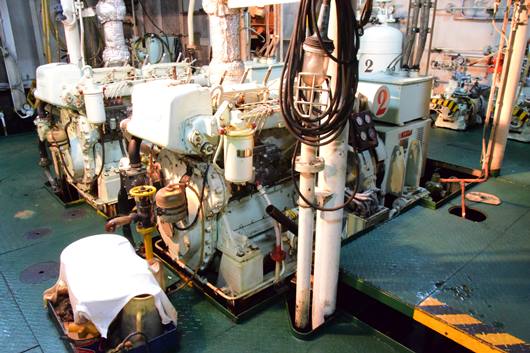

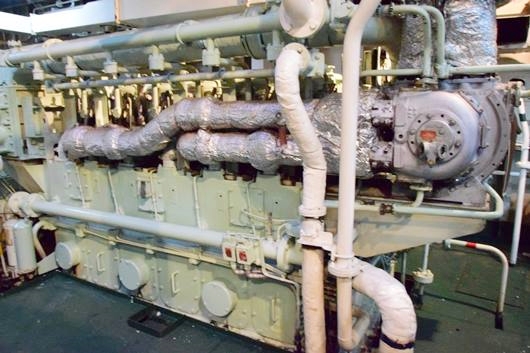

MAIN ENGINE: "CATERPILLAR" MODEL 55SPA (550PS) X 2 ENGINES = 1100PS.
GENERATOR: "YANMAR" 15KVA.

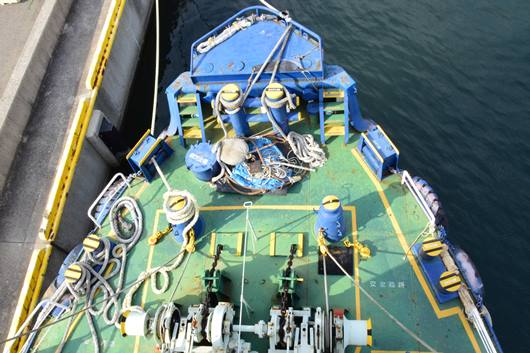

WORKING EQUIPMENT

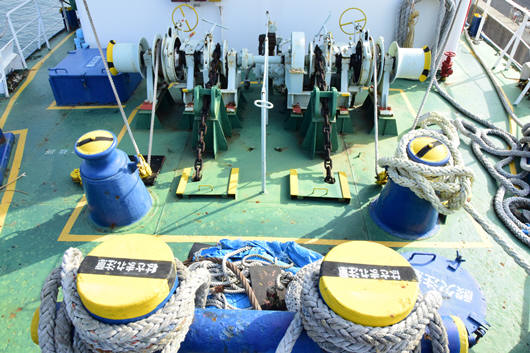

ANCHOR WINCH: 15 TONS X 30 X 200 METERS
ROPE REEL: 3 TONS X 50 METERS X 2 X 100 METERS

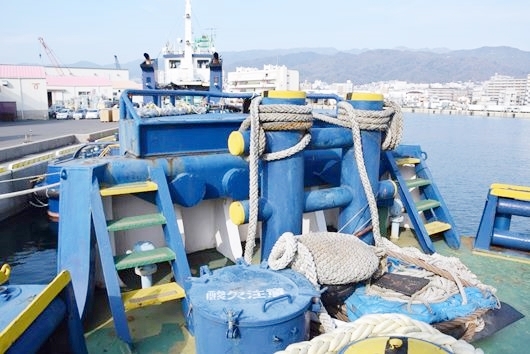

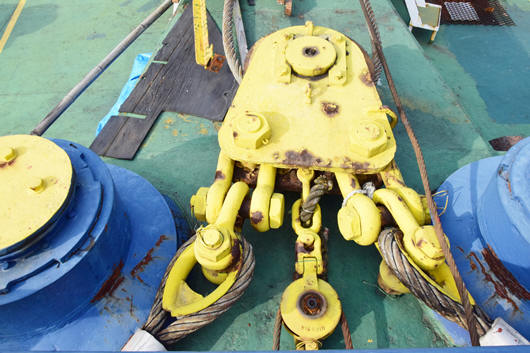

TOWING HOOK: 20 TONS
ANCHOR WINCH CAPACITY: 20 TONS

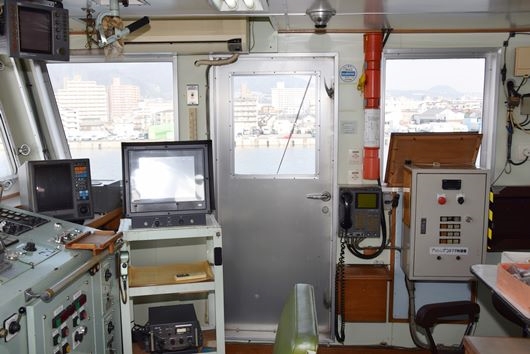

OTHERS
COMPASS: 2 UNITS
GPS: 1 UNIT
RADAR: 1 UNIT
LIFERAFT: ONE FOR 6 PERSONS
E-PIRB: 1 UNIT
RADAR TRANSPONDER: 1 UNIT
BATH ROOM
TOILET

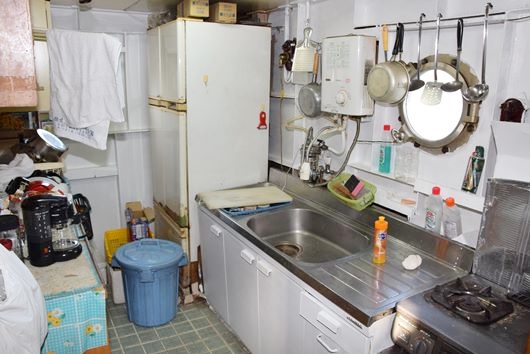

KITCHEN ROOM

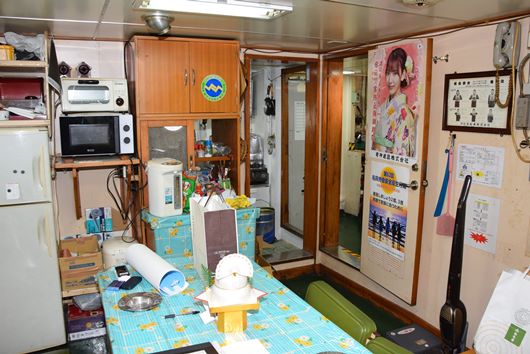

DINING ROOM

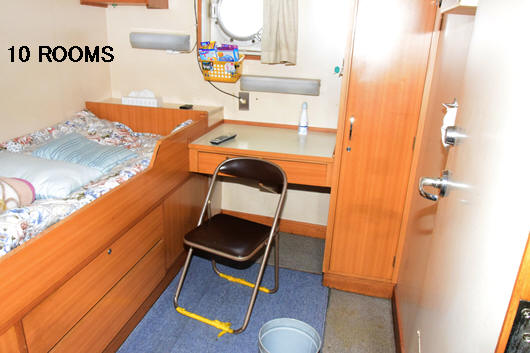

CREW ROOMS


PLEASE CLICK PHOTO TO ENLARGE
