STOCK LIST

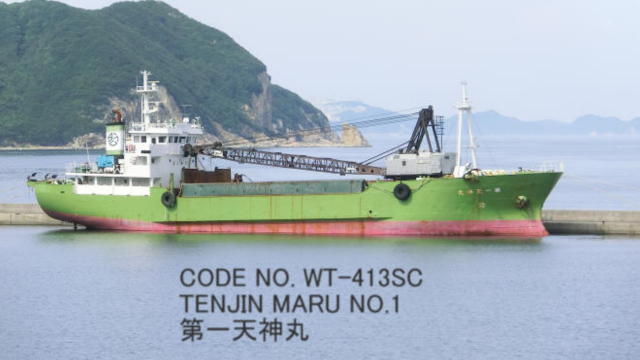

CODE NO. WT-413SC OF USED SAND CARRIER/DREDGER (M/V. TENJIN MARU NO.1)SELF-PROPELLED



WE CAN SUPPLY (SELF-PROPELLED)

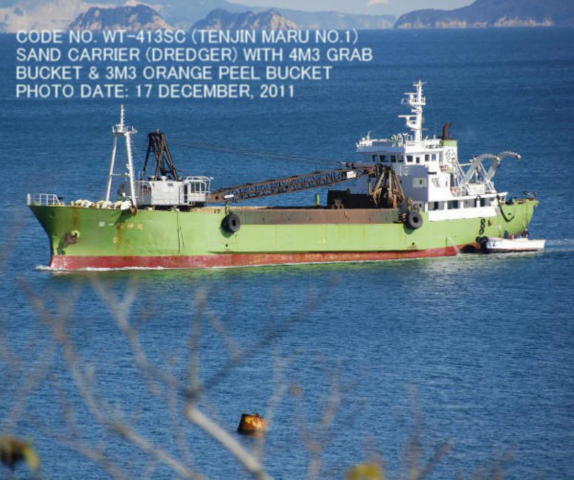

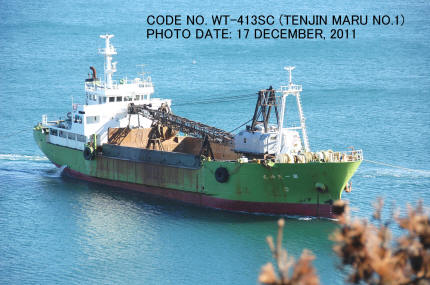

CODE NO. WT-413SC OF USED SAND CARRIER/DREDGER

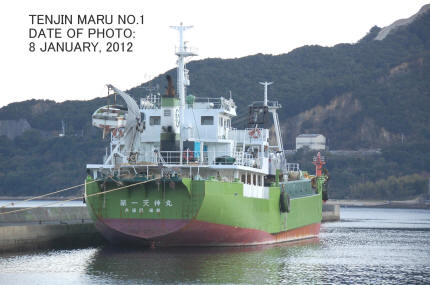

(M/V. TENJIN MARU NO.1) MADE IN JULY 1986. BUT STILL IN GOOD WORKING CONDITION.

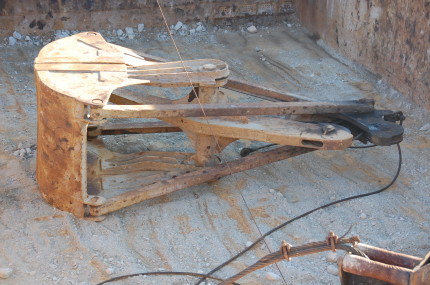

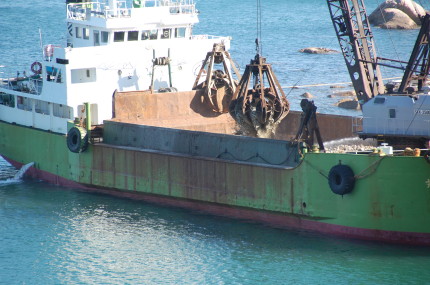

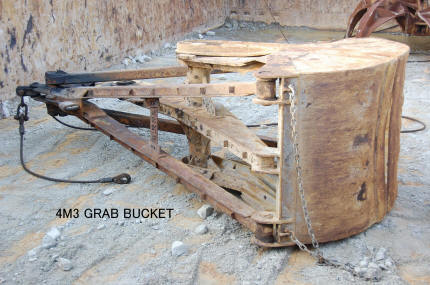

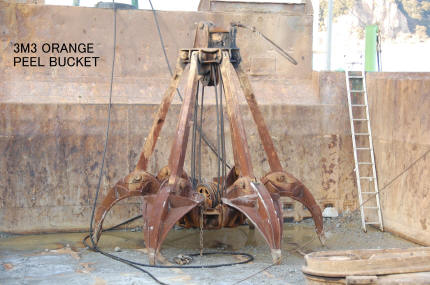

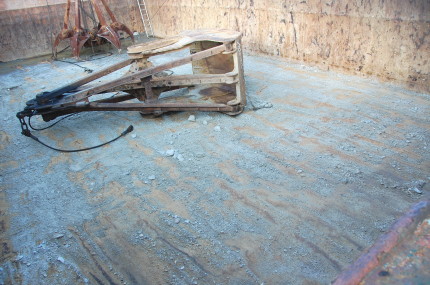

*THIS SAND CARRIER/DREDGER WITH 4M3 GRAB BUCKET & 3M3 ORANGE PEEL BUCKET.

*ATTACHED THE "PDF" FILE FOR YOU TO SEE GENERAL ARRANGEMENT (G.A.).
 PLEASE PRINT OUT AND THEN ENLARGE BY THE COPIER.

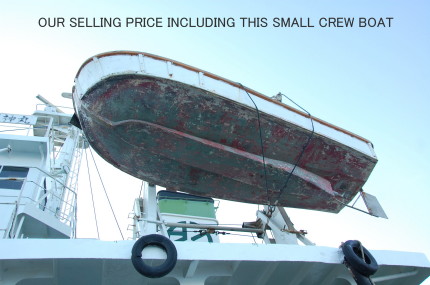

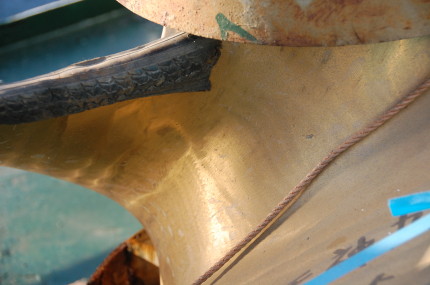

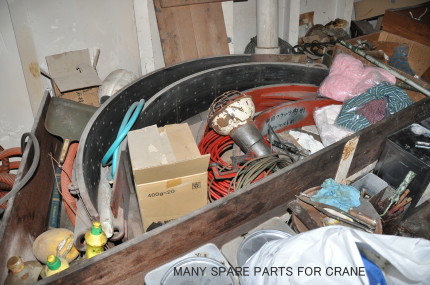

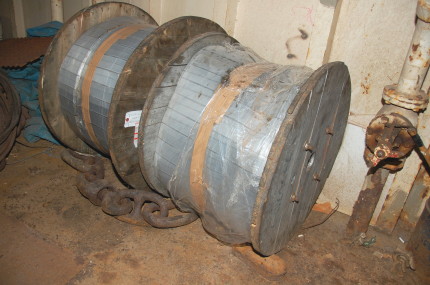

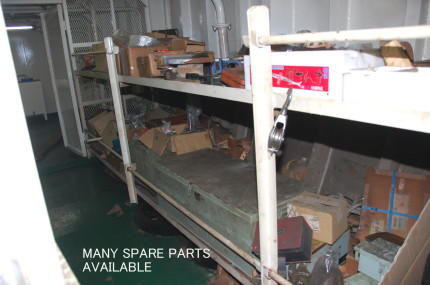

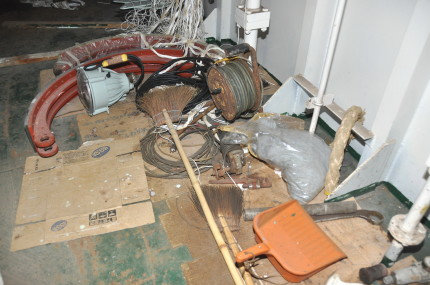

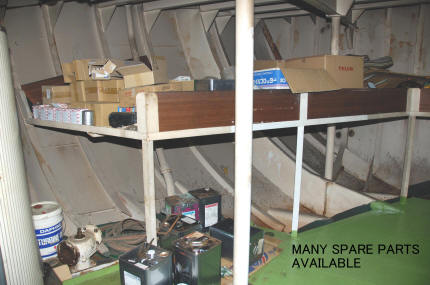

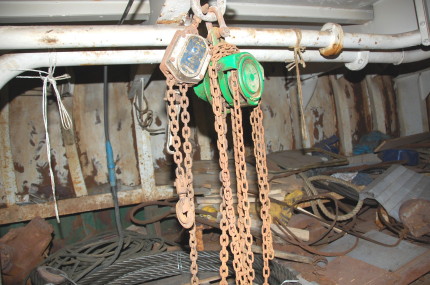

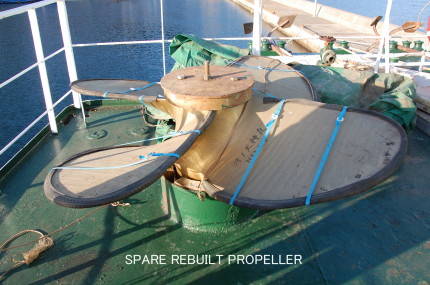

THIS SHIP INCLUDING A SPARE REBUILT PROPELLER, SMALL CREW BOAT AND MANY SPARE PARTS.

PLEASE CLICKhttp://youtu.be/ecqkbfuUGogTO SEE THE VIDEO & CLICK http://youtu.be/F9U7RkEDG3U
TO SEE THE SLIDE SHOW OF 63 PHOTOS.

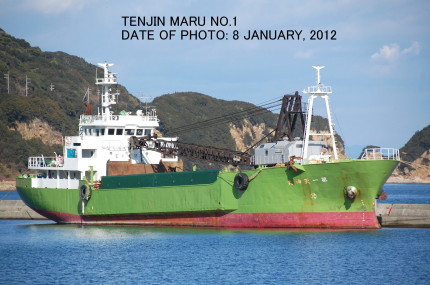

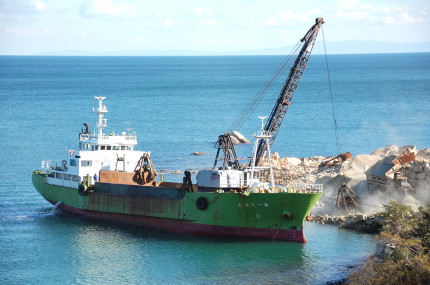

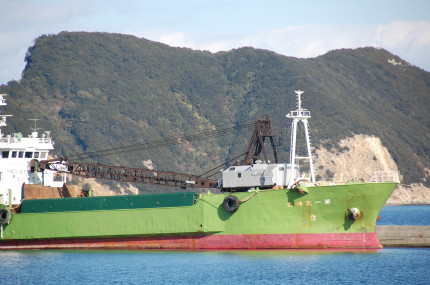

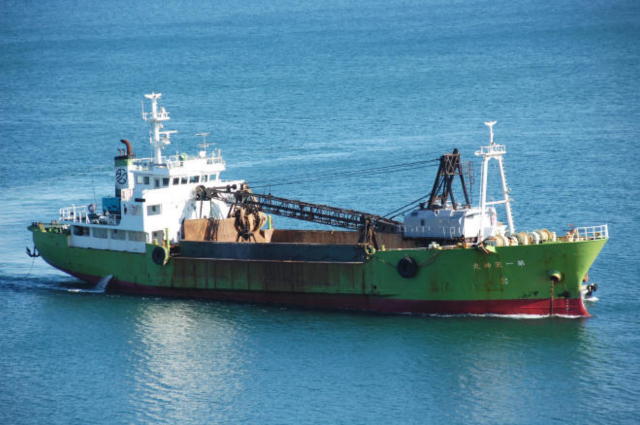

SPECIFICATIONS OF SAND CARRIER/DREDGER * M/V. TENJIN MARU NO.1
================================================================
LENGTH OVERALL:                               62.33M.
REGISTERED LENGTH:                          57.56M.
REGISTERED BREADTH:                        13.00M.
REGISTERED DEPTH:                            5.60M.

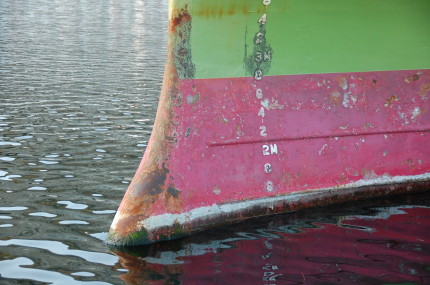

DRAFT:                                                4.07M. (FULL LOAD).

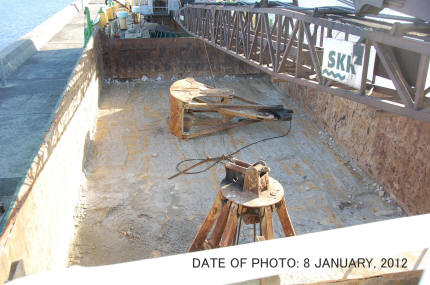

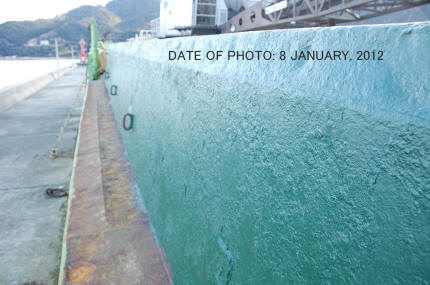

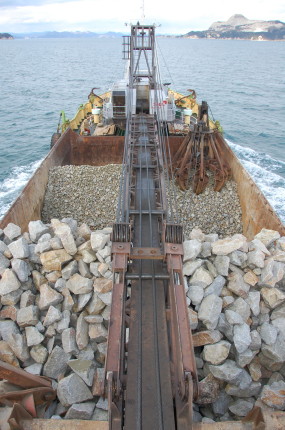

CARGO HOLD SIZE: 21.45M X 11.00M X 3.59M = 847.06M3 (ABOUT 1300 TONS).
GROSS TONNAGE:                               490 TONS.
CLASSIFICATION:                                 JG (JAPAN GOVERNMENT).
BUILDER OF SHIP:                                 TOKUSHIMA SHIPBUILDING INDUSTRY CO., LTD. JAPAN.
YEAR OF BUILT:                                   JULY 1986 (STILL IN GOOD WORKING CONDITION).

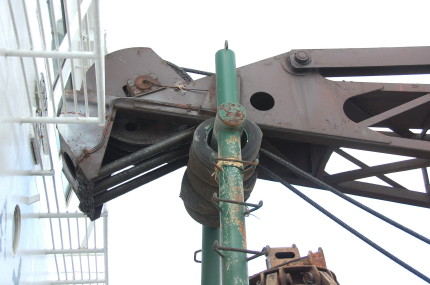

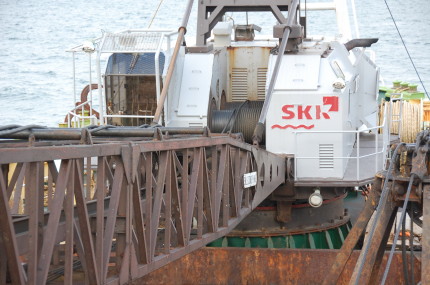

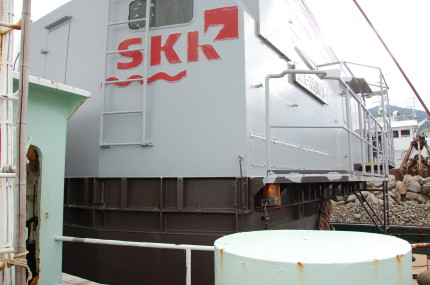

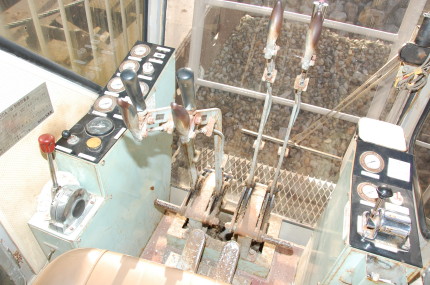

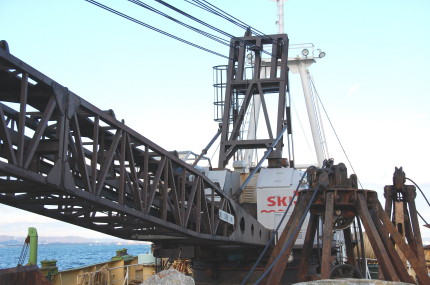

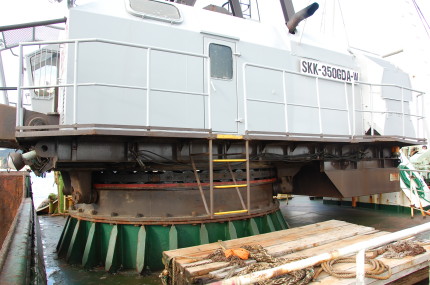

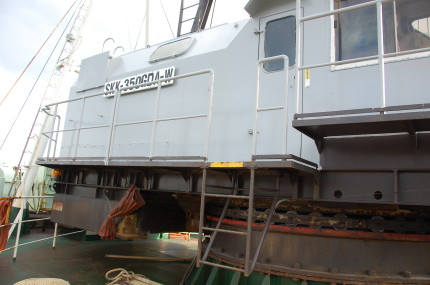

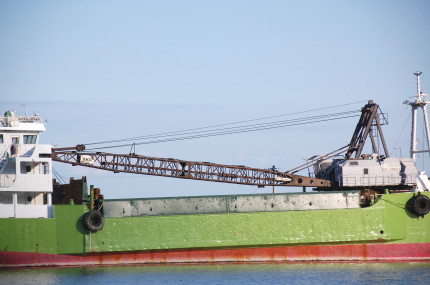

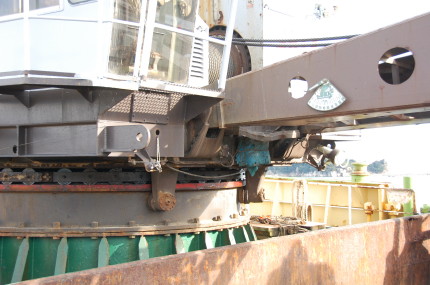

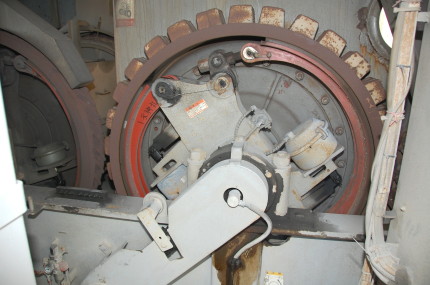

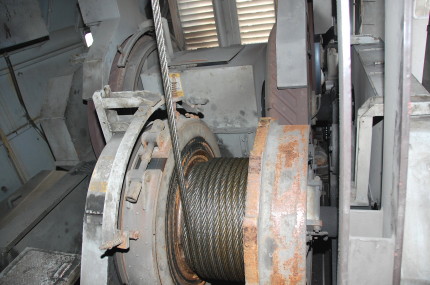

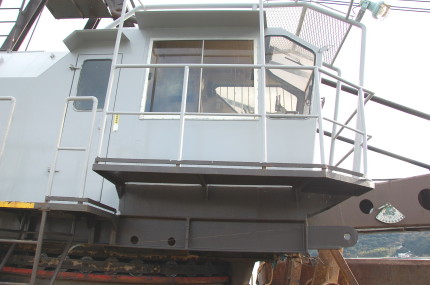

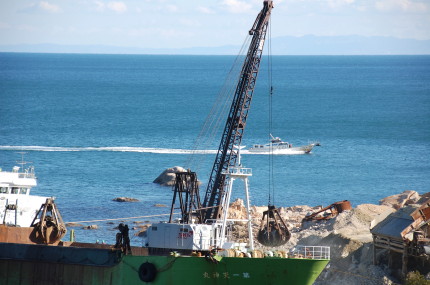

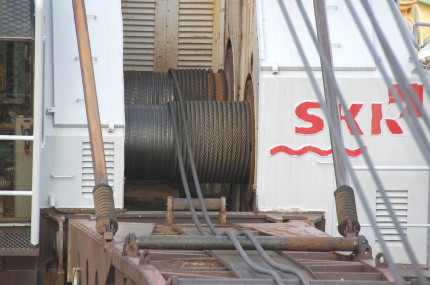

MAKER & MODEL OF CRANE:                 SKK-350GDA-W.

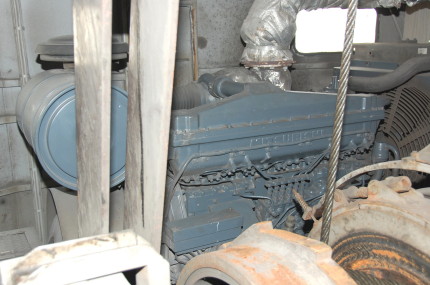

MAKER OF CRANE ENGINE:                  "MITSUBISHI" MODEL S6AMPTA (450PS/1800RPM).

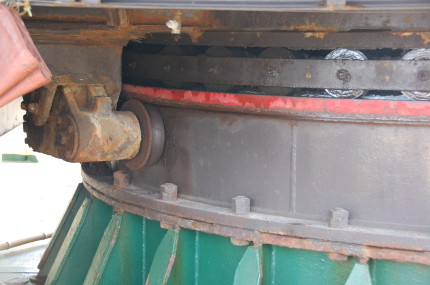

CRANE REVOLVING:                            360 DEGREE.
BOOM LENGTH:                                   24M.
BOOM WORKING ANGLE:                       30 DEGREE TO 80 DEGREE.
DEPTH OF DREDGING:                          30 METERS (BELOW WATER LEVEL).

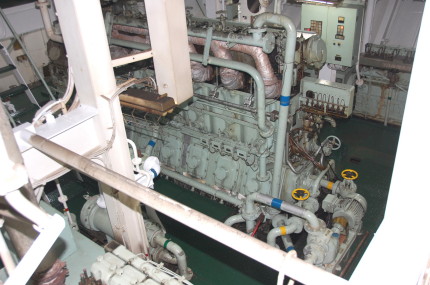

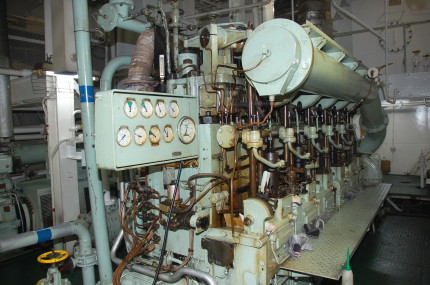

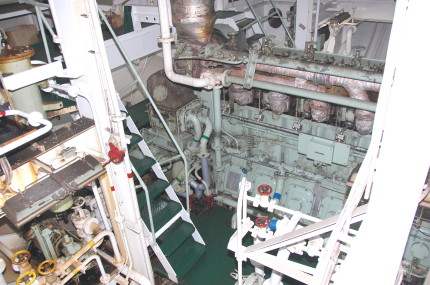

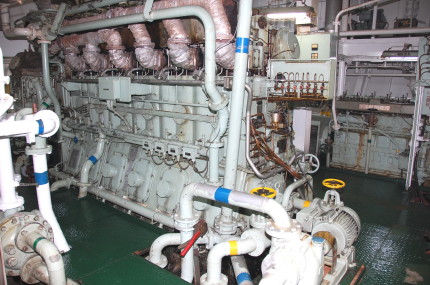

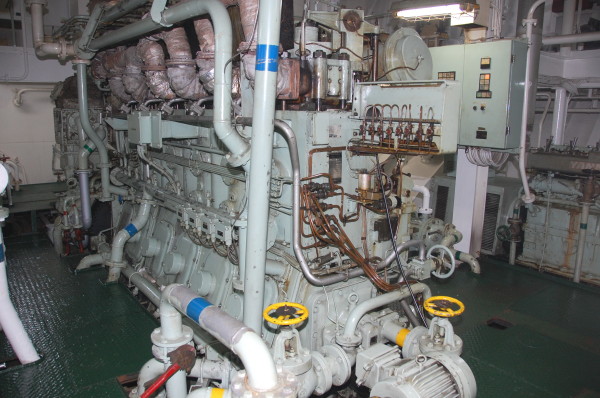

MAIN ENGINE:       "HANSHIN" 6LUN28AG (1000PS/355RPM X 1 ENGINE) SHOWS IN THE DOCUMENT.
*ACTUAL ENGINE POWER: 1400PS.

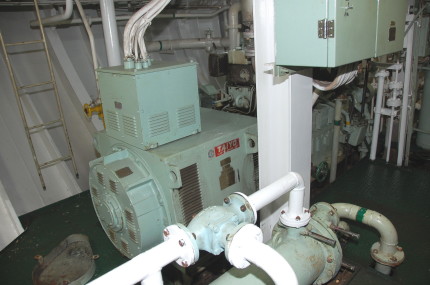

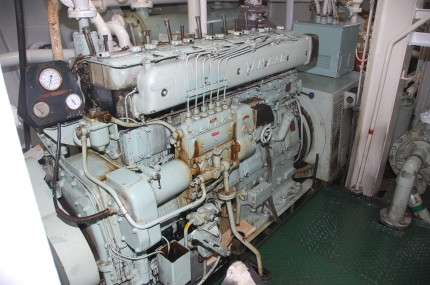

AUXILIARY ENGINE & GENERATOR: "YANMAR" 6KFL (145PS/1200RPM/AC225V) WITH 120KVA GENERATOR X 2 UNITS.

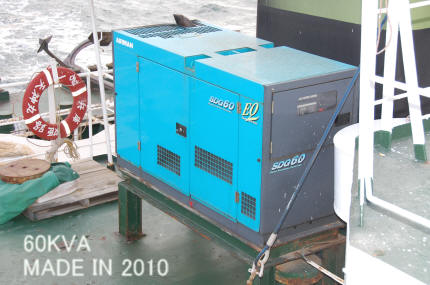

AUXILIARY GENERATOR:                      "AIRMAN" SDG60 (60KVA) FOR MOORING.
BOW THRUSTER:  ONE.

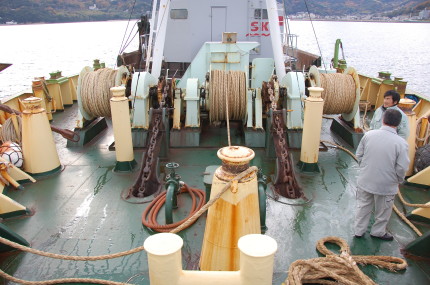

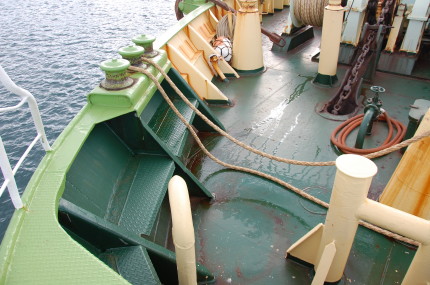

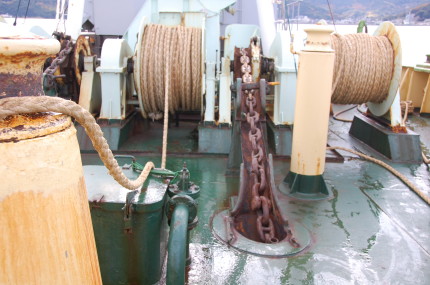

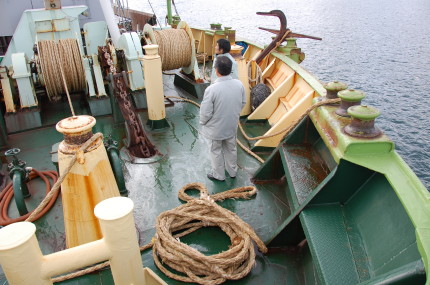

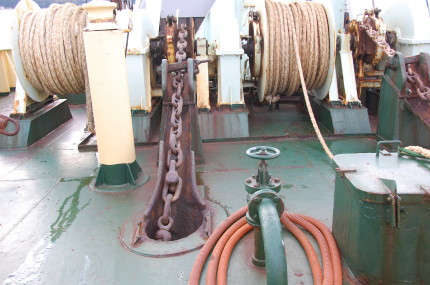

ANCHOR:                                               4 UNITS.
MAX. SPEED:                                       11.59 KNOTS.

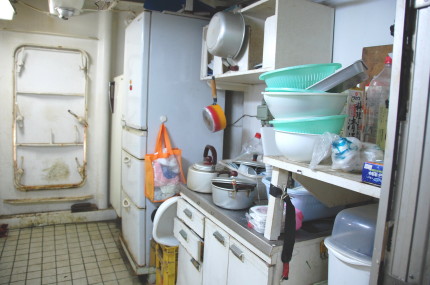

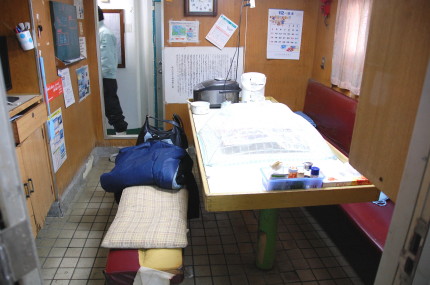

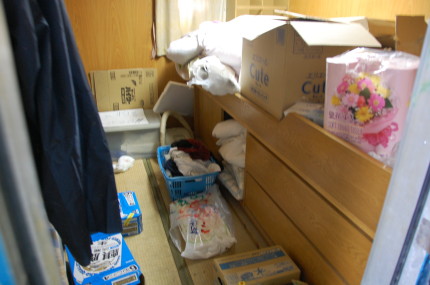

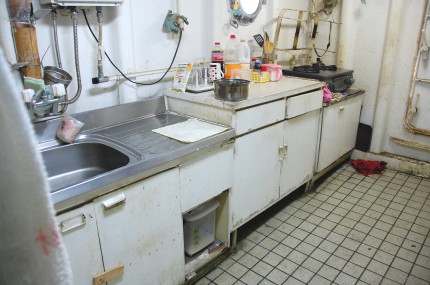

CREW ROOM:                                       6 ROOMS FOR 12 PERSONS.

CLASSIFICATION: JG (JAPAN GOVERNMENT) CAN CHANGE TO ANY CLASSIFICATION.
