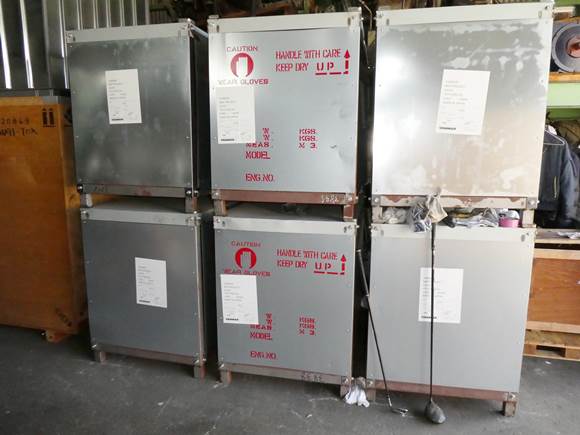

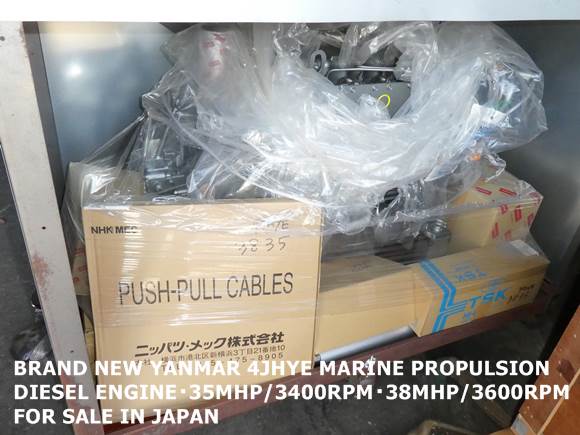

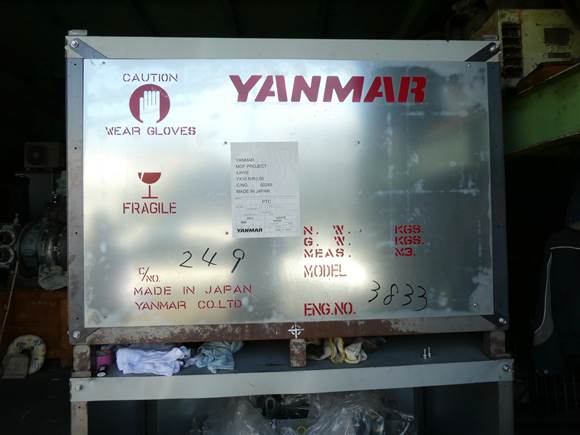

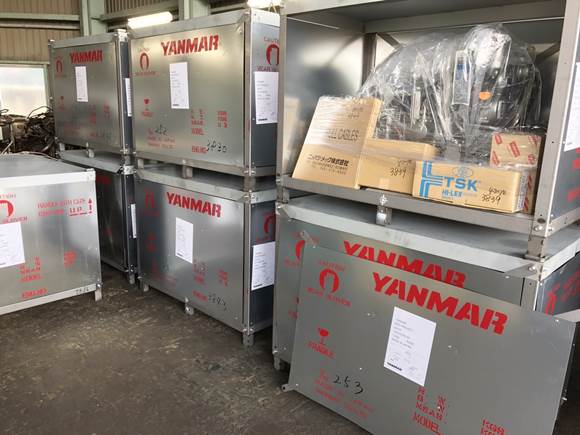

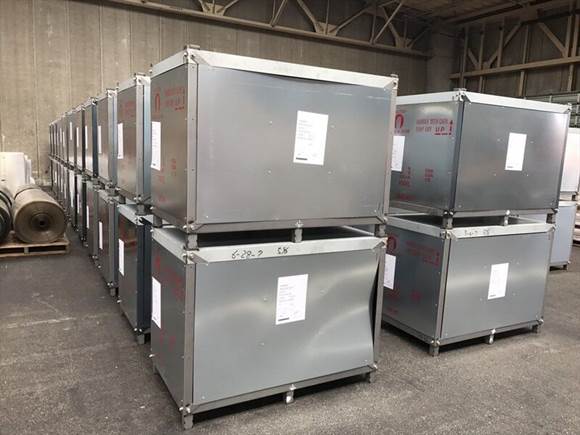

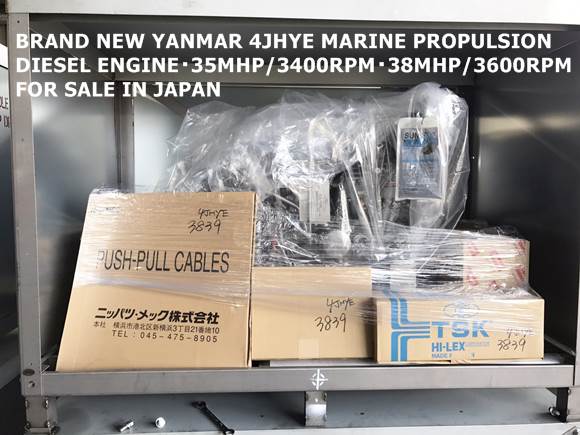

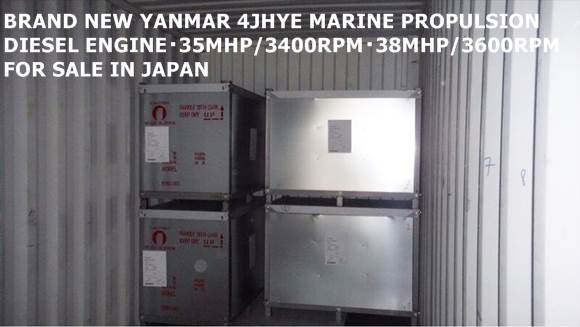

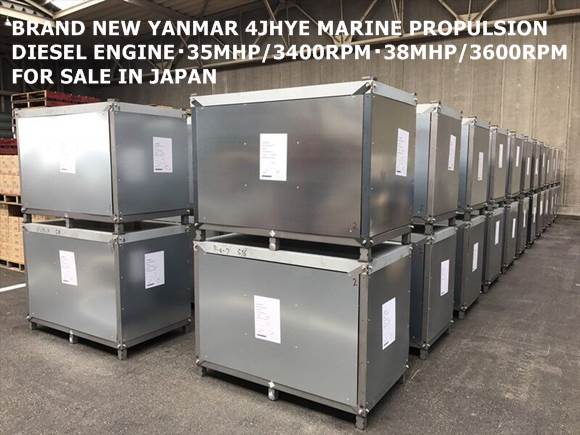

BRAND NEW YANMAR MARINE PROPULSION DIESEL ENGINE MODEL 4JHYE (35MHP/3400RPM ・38MHP/3600RPM) FOR SALE IN JAPAN
WE CAN SUPPLY

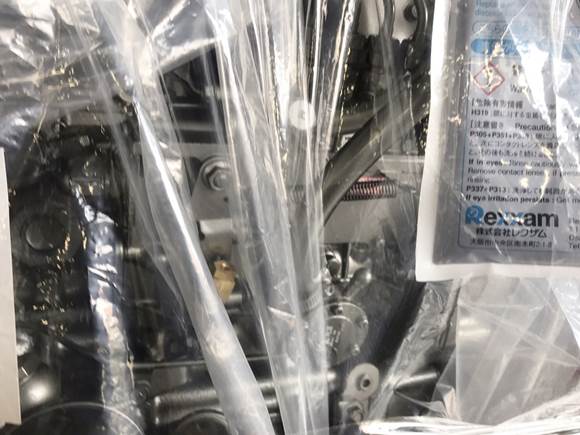

BRAND NEW YANMAR MARINE PROPULSION DIESEL ENGINE MODEL 4JHYE (35MHP/3400RPM ・38MHP/3600RPM).
ONE UNIT OF BRAND NEW YANMAR MARINE PROPULSION DIESEL ENGINE MODEL 4JHYE WITH THE FOLLOWING ACCESSORIES.
INSTRUMENT BOARD (C PANEL).
KINGSTON COCK.
SEAWATER STRAINER.
BATTERRY SWITCH.
REMOTE CONTROL CABLE (7M).
WIRE HARNESS.
ENGINE STOP SOLENOID.
Engine Specifications

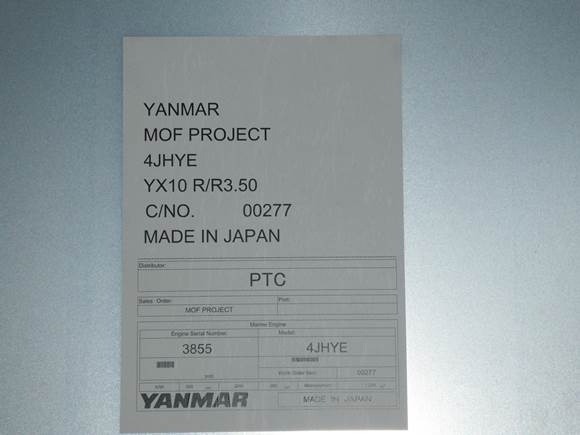

Model : 4JHYE
Type :4-cycle, vertical, natural aspirated diesel engine
Number of cylinders :4
Bore x stroke mm(in) :78 x 86 (3.07 x 3.39)
Displacement lit.(cu.in) :1.644 (100.3)
Rated output (kW (mhp) / rpm) : M :25.7(35) / 3400 / L :29.4(38) / 3600
Direction of rotation :Crank shaft Counterclockwise viewed from stern / Prop.shaft Clockwise viewed from stern
Combustion system :Direct injection
Cooling system :Fresh water cooling with centrifugal pumps
Lubricating system :Forced lubrication with trochoid pump
Starting system : Electric
Marine gear
Model : YX-10
Type : Hydraulic multi-disk clutch, wet type
Reduction ratio (forward) : 2.54 / 3.13 / 3.50
Propeller shaft speed rpm : 1341 / 1188 / 971
Lubrication system : Forced lubrication with gear pump
Dry Weight kg (lbs) :220 (485)
--------------------------------------------------------
