STOCK LIST

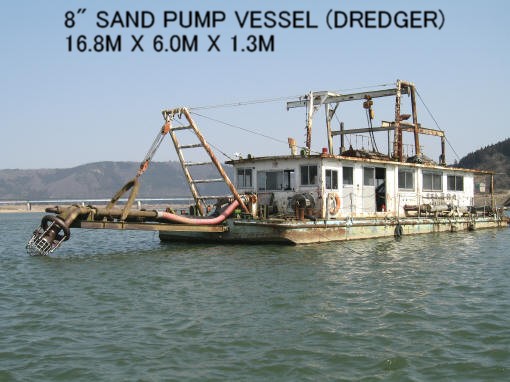

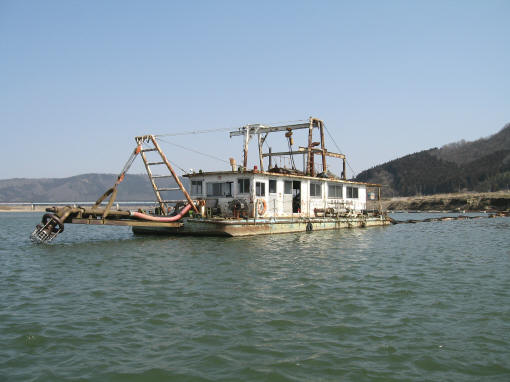

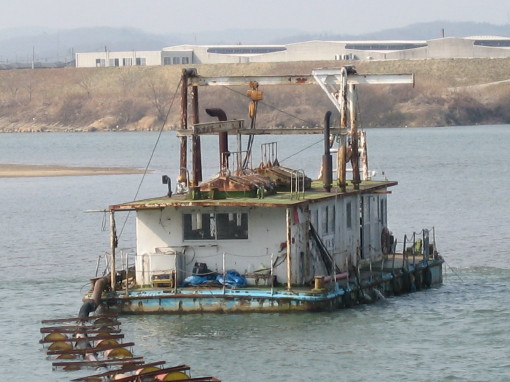

(NON-PROPELLED)"KURIMOTO" 8" SAND PUMP VESSEL (DREDGER)


WE  CAN SUPPLY (NON-PROPELLED)

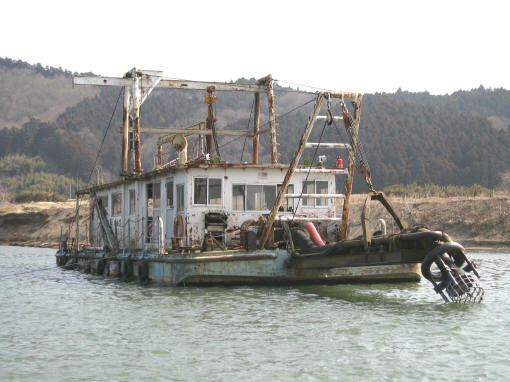

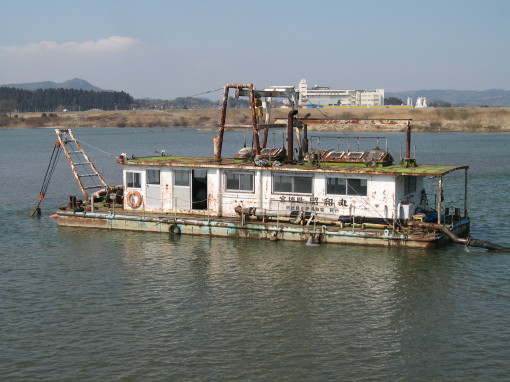

USED "KURIMOTO" 8" SAND PUMP VESSEL (DREDGER) 16.8M X 6.0M X 1.3M WITH "YANMAR" MODEL S185-ST (600PS/6 CYLINDERS/900RPM)
MARINE ENGINE AND "EBARA" 150HS3 JET PUMP, ETC.

NAME OF VESSEL: SHOWA MARU
DEPTH OF SUCTION: 4.5M
SUCTION CAPACITY OF SAND: 120M3 PER HOUR
*SUCTION CAPACITY OF MUD: ABOUT 300M3 ~ 350M3

OUR PRICE INCLUDES

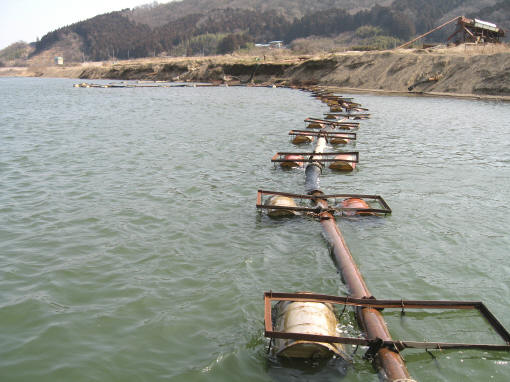

IRON PIPE INSIDE DIAMETER 200MM X LENGTH 5500MM (39 PIECES) = 214.5 METERS

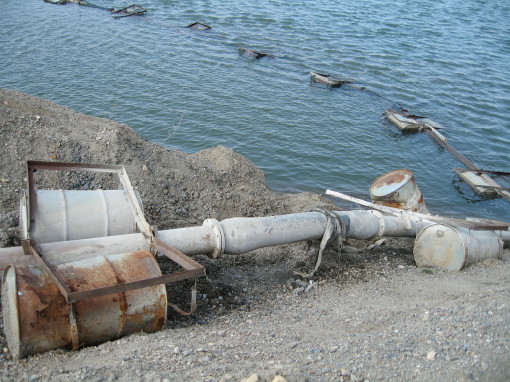

RUBBER HOSE INSIDE DIAMETER 200MM X LENGTH 1950MM (70 PIECES) = 136.5 METERS
*TOTAL LENGTH 351 METERS

*MAXIMUM TRANSPORTATION PRESSURE CAN REACH UP TO 500 METERS.

*THIS VESSEL ONLY SUITABLE FOR SUCKING SAND OR MUD IN THE RIVER.
*THIS VESSEL ALREADY HAS BEEN DISMANTLED.
*THIS VESSEL NEEDS PUT ON A BIG CARGO VESSEL FOR SHIPPING.

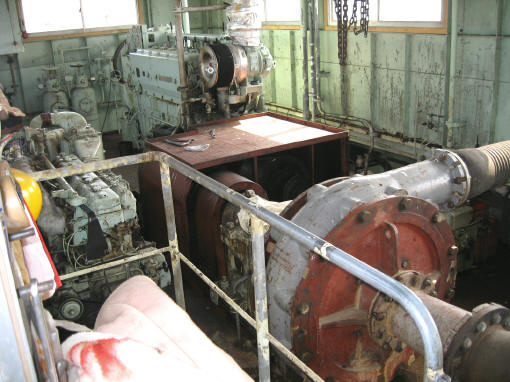

*MAIN EQUIPMENT AS FOLLOWS:

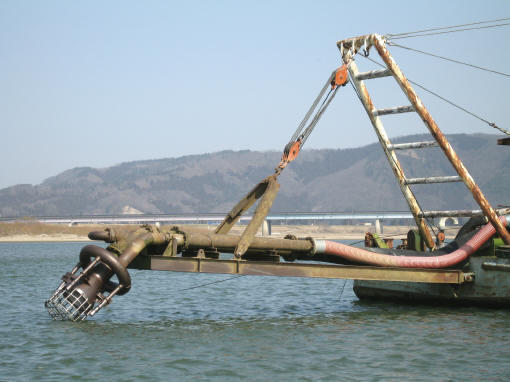

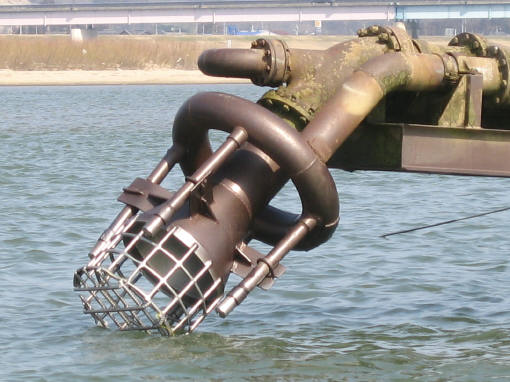

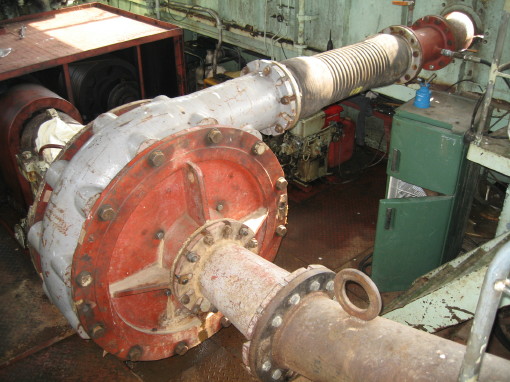

"KURIMOTO" MODEL KSP200-DH (8") SAND PUMP

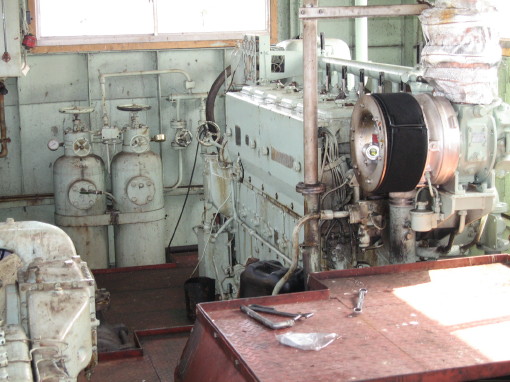

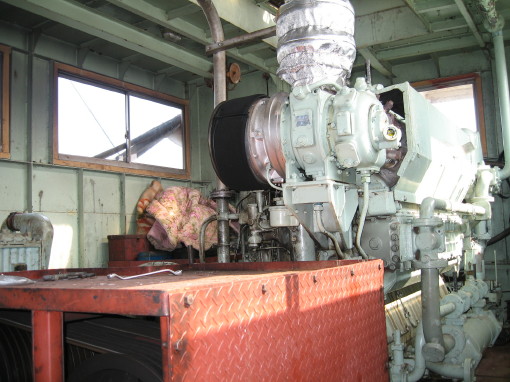

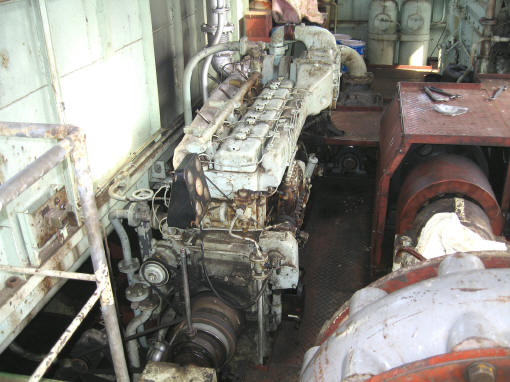

"YANMAR" MODEL S185-ST 600PS/6 CYLINDERS/900RPM) MARINE ENGINE

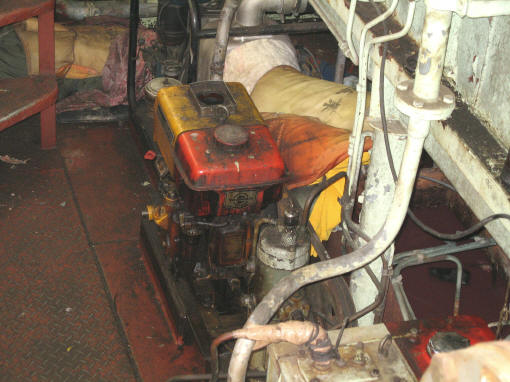

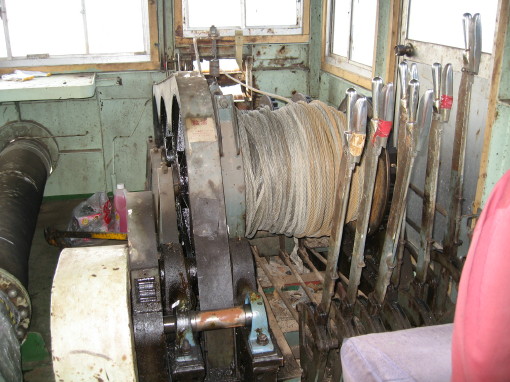

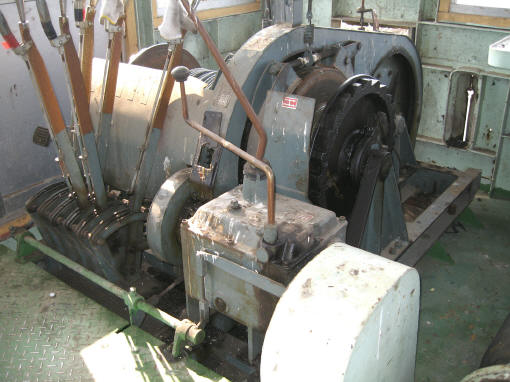

"YANMAR" MODEL SYE-7 ENGINE FOR WINCH AND JET PUMP
"EBARA" MODEL 150HS3 JET PUMP

PLEASE CLICK PHOTO TO ENLARGE
