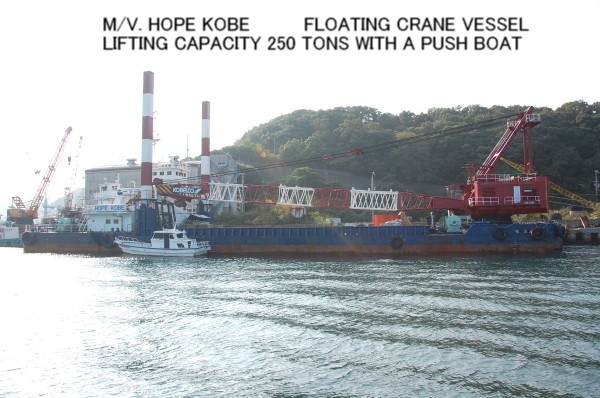

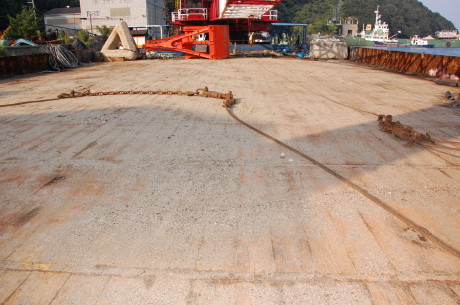

CODE NO. WT-389FB OF USED FLOATING CRANE VESSEL LIFTING CAPACITY 250 TONS & PUSH BOAT OF 1600PS
(SELF-PROPELLED)
CODE NO. WT-389FB OF USED FLOATING CRANE VESSEL LIFTING CAPACITY 250 TONS
WITH PUSH BOAT OF 1600PS X ONE ENGINE (MADE IN 1995)

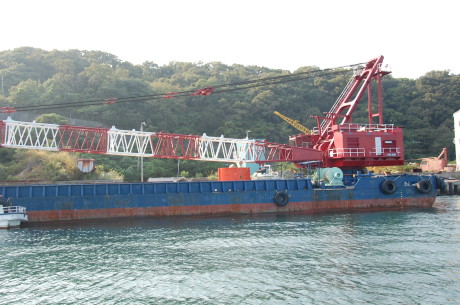

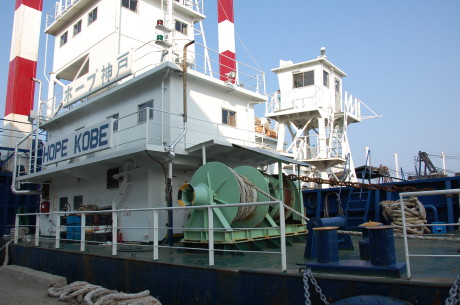

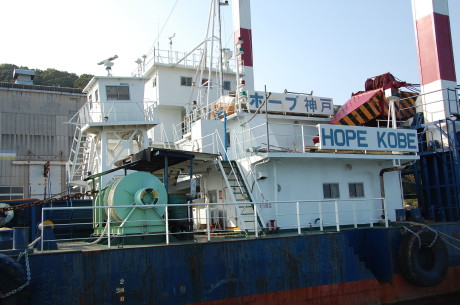

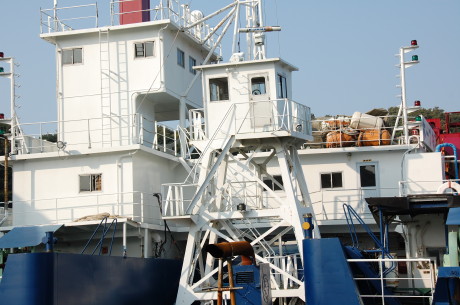

＊SPECIFICATIONS OF FLOATING CRANE VESSEL* M/V. HOPE KOBE (MADE IN 1995)
==========================================================================
LENGTH OVERALL 69.0M
BREADTH (MLD) 20.0M
DEPTH (MLD) 4.0M
MAKER OF SHIP SANOYAS HISHINO MEISHO CORP. JAPAN

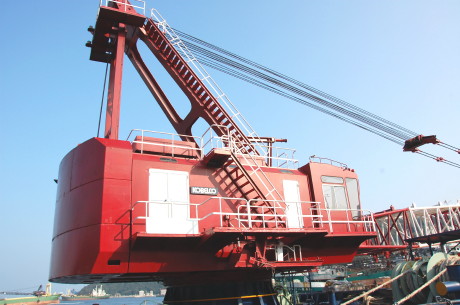

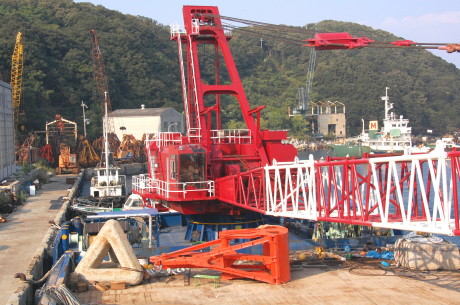

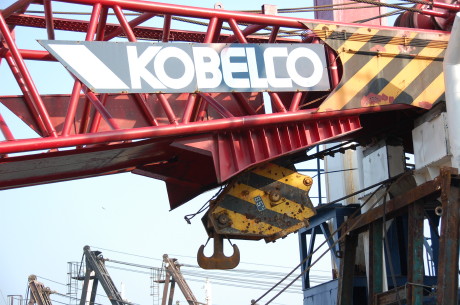

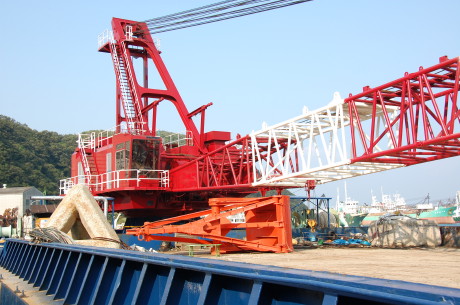

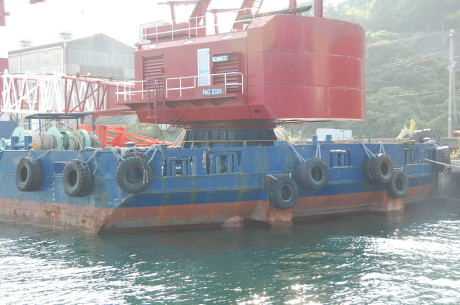

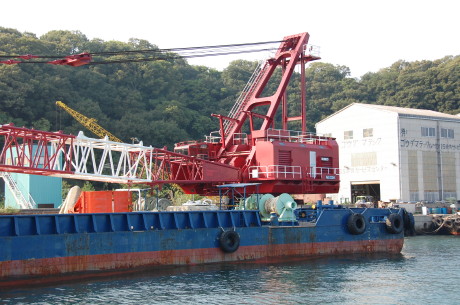

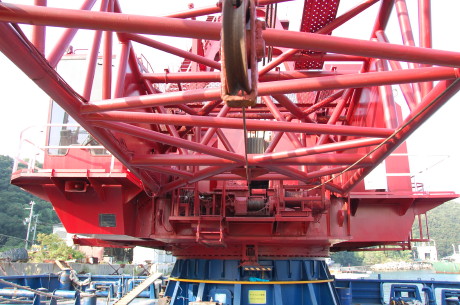

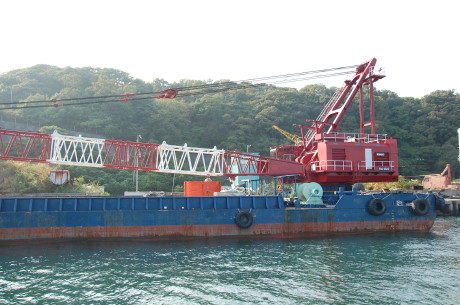

MAKER OF CRANE "KOBELCO" MODEL F&G 2324

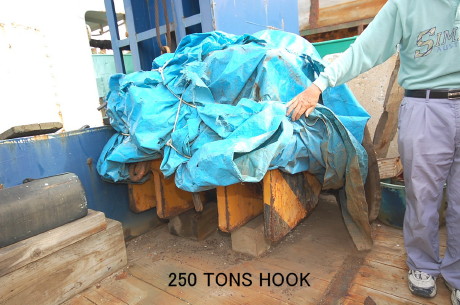

MAX. LIFTING CAPACITY OF CRANE 250 TONS

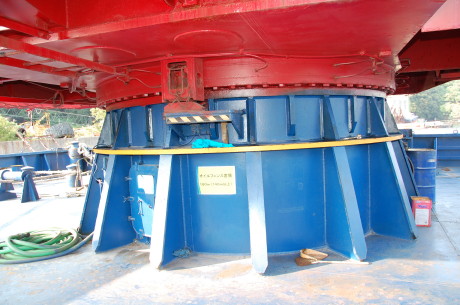

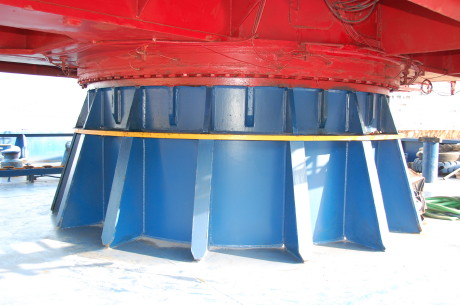

CRANE REVOLVING 360 DEGREE

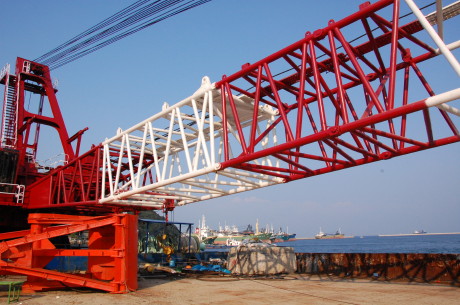

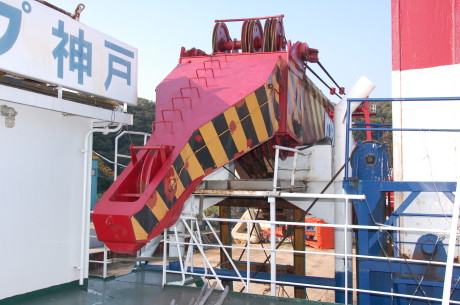

BOOM LENGTH 40M
BOOM WORKING ANGLE 30 DEGREE ～77 DEGREE
MAKER OF CRANE ENGINE "MITSUBISHI" MODEL S6A2-MPTA (565PS/2000RPM)
GENERATOR 150KVA & 60KVA
ORANGE PEEL BUCKET 4M3 X 1 PIECE
GRAB BUCKET 5M3 X 1 PIECE
DREDGING DEPTH 40M
SPUD 1 METER SQUARE X 25 METERS LONG X 2 SETS
SIDE THRUSTER ONE SET OF 3 TONS AT STEM AND ONE SET 5 TONS AT STERN

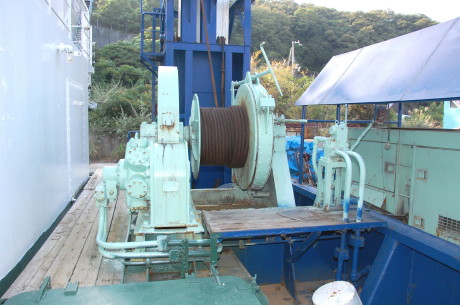

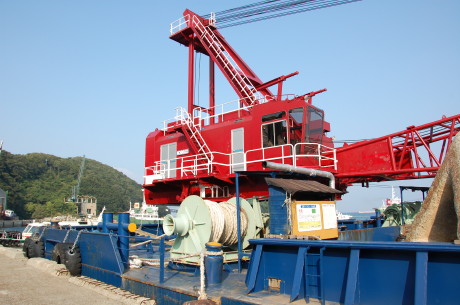

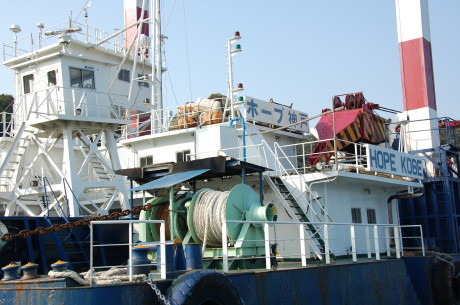

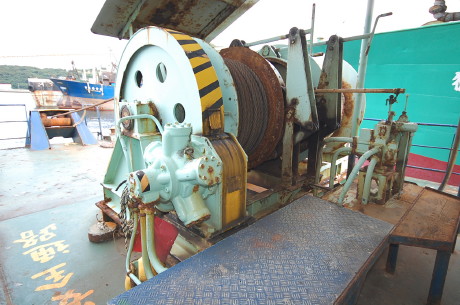

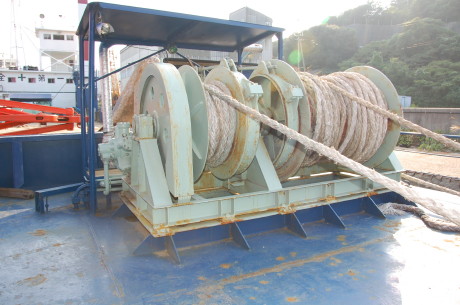

WINCH 4 UNITS
ANCHOR 4 UNITS
FUEL OIL TANK CAPACITY 160M3
FRESH WATER TANK CAPACITY 240M3
BALLAST TANK CAPACITY 500M3
DEAD WEIGHT 1600 TONS
COMPLEMENT 8 PERSONS

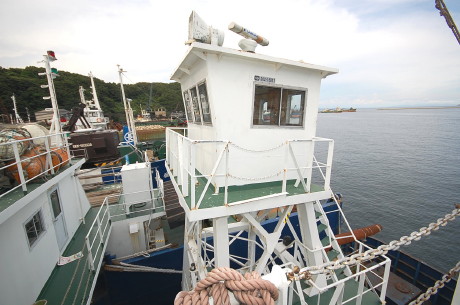

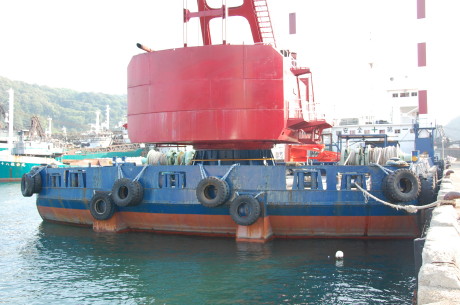

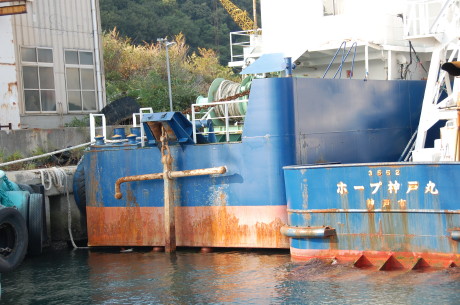

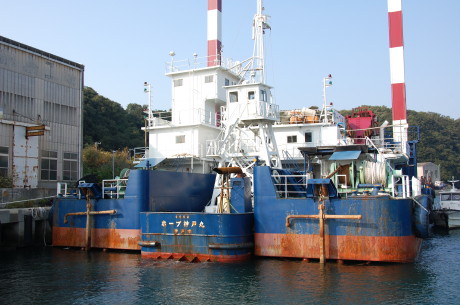

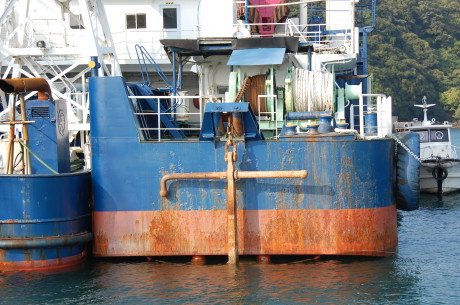

*SPECIFICATIONS OF 1600PS PUSH BOAT* M/V. HOPE KOBE MARU (MADE IN 1995)
==========================================================================
LENGTH OVERALL 13.0M
REGISTERED LENGTH 11.84M
REGISTERED BREADTH 5.59M
REGISTERED DEPTH 2.12M
MAKER OF PUSH BOAT DAIOH ZOKI CO., LTD. JAPAN
GROSS TONNAGE 19 TONS
MAKER OF ENGINE "YANMAR" MODEL 6N260-UN (1600PS) X 1 UNIT

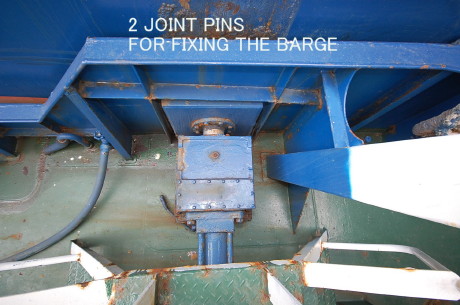

JOINT PIN: BOTH SIDES WITH JOINT PINS FOR FIXING THE FLOATING CRANE VESSEL
SPEED 7
