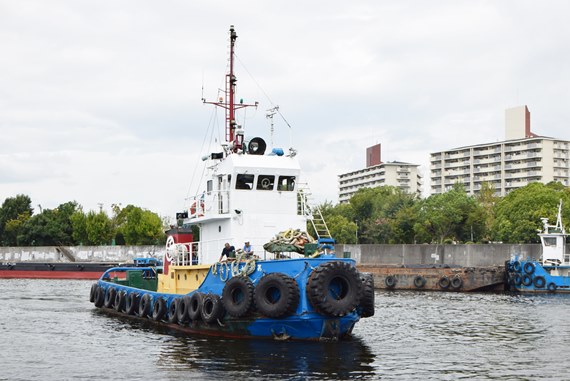

1100HP TUG BOAT/PUSHER BOAT (OVERALL LENGTH 23.78M) REGISTERED 21.79M X 6.40M X 3.50M WITH 550PS X 2 ENGINES *NAME OF VESSEL: CHIYO MARU NO.35
WE CAN SUPPLY
1100HP TUG BOAT/PUSHER BOAT (OVERALL LENGTH 23.78M) REGISTERED 21.79M X 6.40M X 3.50M WITH 550PS X 2 ENGINES.
================================================================================================================
*PARTICULARS*NAME OF VESSEL: CHIYO MARU NO.35
OFFICAL NO. 125280
OVERALL LENGTH: 23.18M
REGISTERED LENGTH: 21.79M
REGISTERED BREADTH: 6.40M
REGISTERED DEPTH: 3.50M
DRAFT: 3.00M
GROSS TONNAGE: 82 TONS
DATE OF LAUNCH: JULY 1983
NAME OF SHIPBUILDER: TERAOKA SHIPYARD CO., LTD. JAPAN

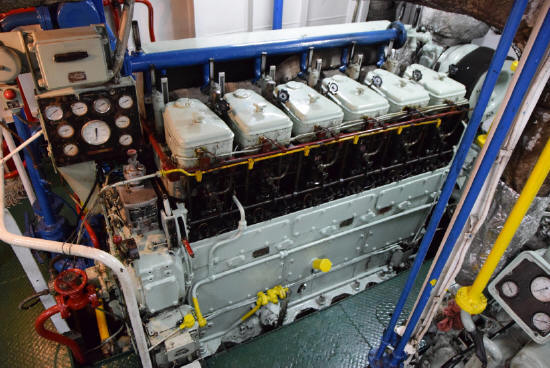

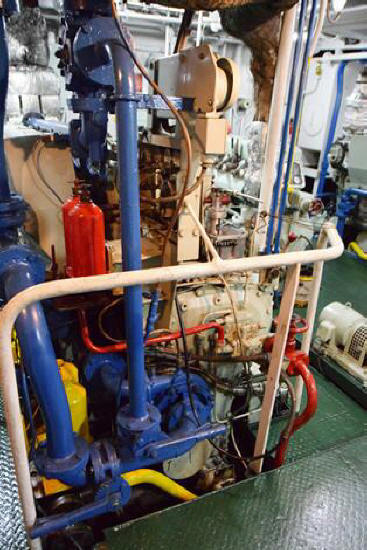

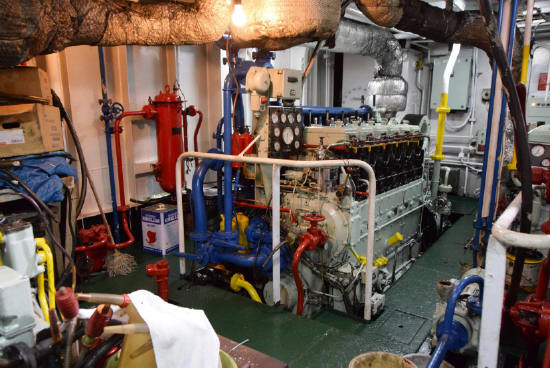

MAIN ENGINE: "YANMAR" MODEL S185-ST (550PS/900RPM X 2 ENGINES = 1100PS

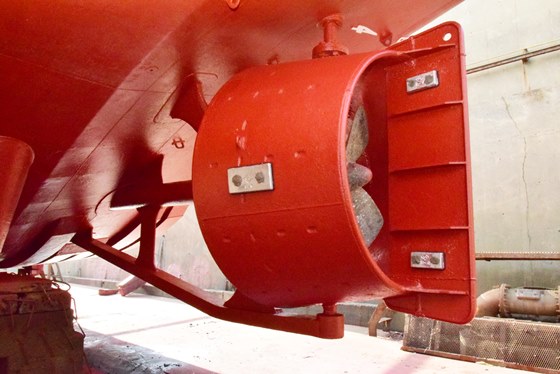

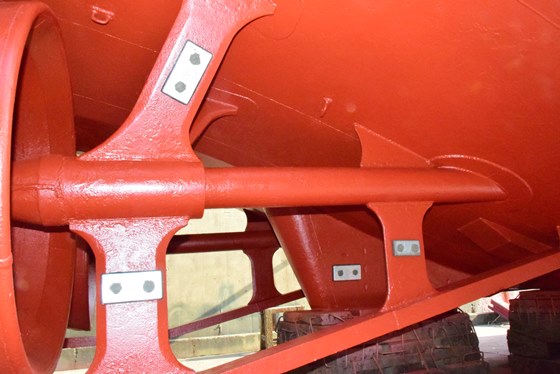

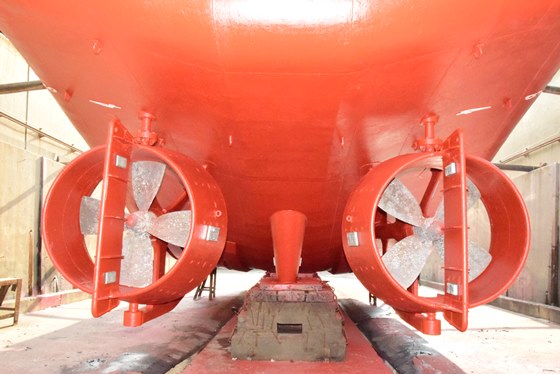

PROPELLER: KAMOME PROPELLER WITH KORT NOZZLE (4-BLADE SOLID X 1400MM) X 2 UNITS

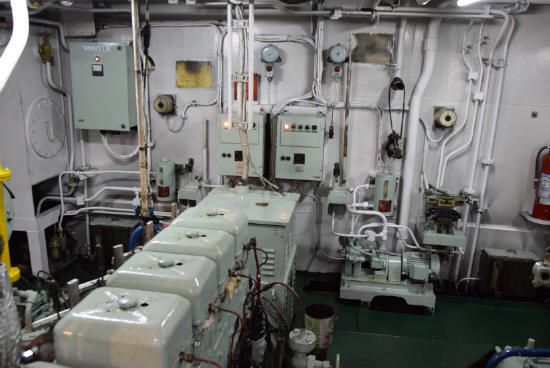

AUXILIARY GENERATOR: "YANMAR" MODEL 4LDL (64PS/900RPM) AC225V/60HZ/50KVA X 1 UNIT
AUXILIARY GENERATOR: "YANMAR" MODEL 4EKE (55PS/1200RPM) AC225V/60HZ/37KVA X 1 UNIT
AUXILIARY GENERATOR ON DECK: "DENYO" MODEL 45ES (45KVA) FOR MOORING

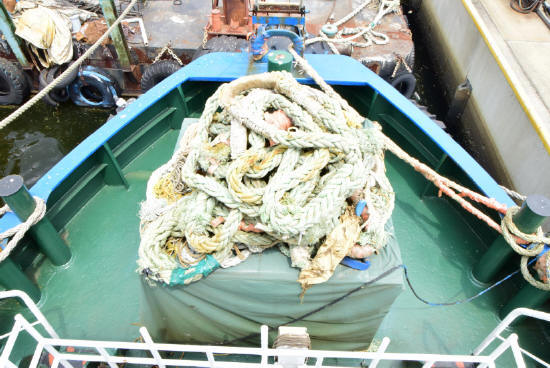

TOWING HOOK: 15 TONS
WINDLASS: ELECTRIC OPERATION 2.5 TONS AT 10M (7.5KW) X 2 UNITS
LIFE RAFT: 1 UNIT FOR 20 PERSONS
COMPLEMENT: 6 CREWS
VALIDITY OF VESSEL: 20 FEBRUARY, 2020
MAXIMUM SPEED: 10.5 KNOTS
CLASSIFICATION: JG (JAPAN GOVERNMENT)
WE WOULD LIKE TO SEND THE NIKON IMAGE SPACE WEBSITE FOR YOU TO SEE THE SAILING CONDITION AND LARGE PHOTO AS FOLLOWS:

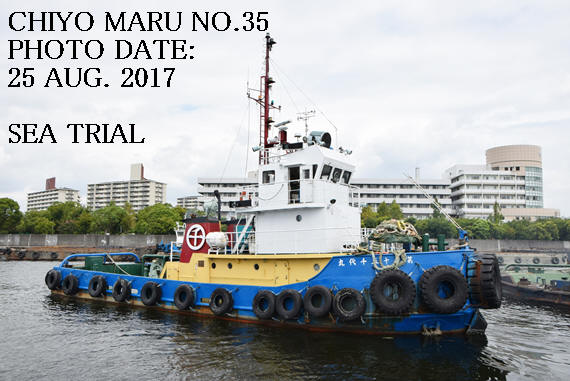

http://img.gg/y9RELqw MOVIE-25 AUG. 2017

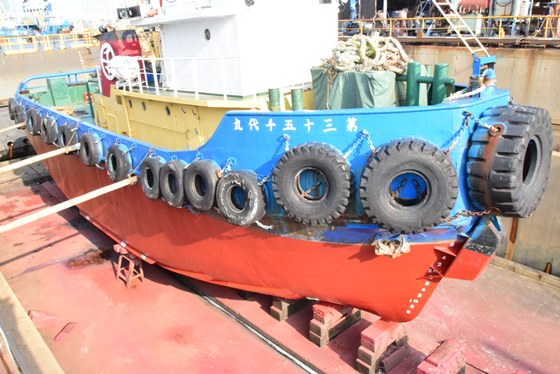

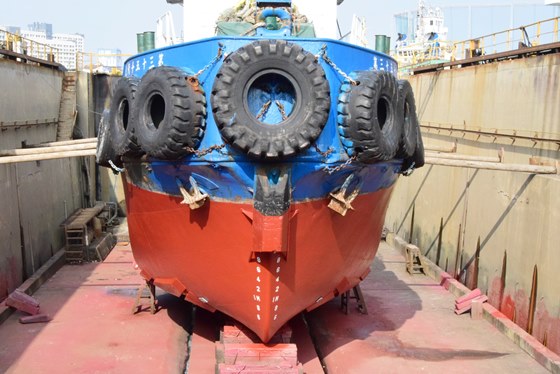

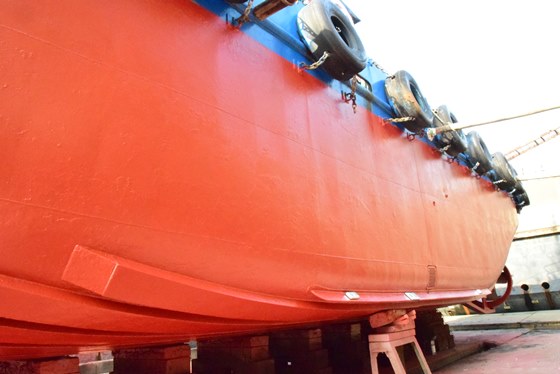

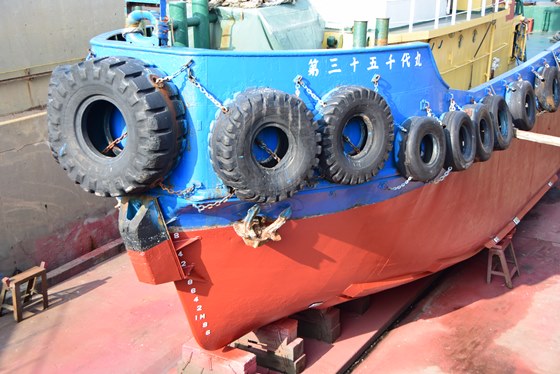

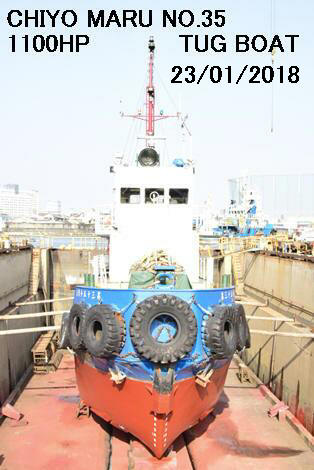

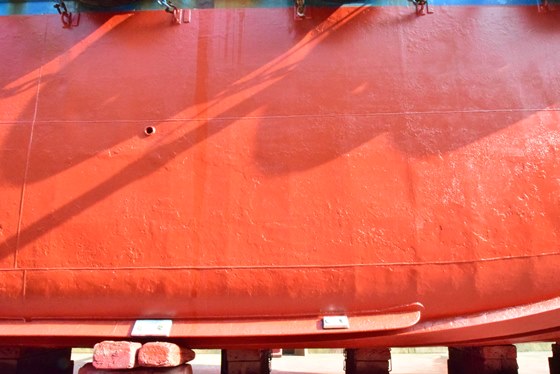

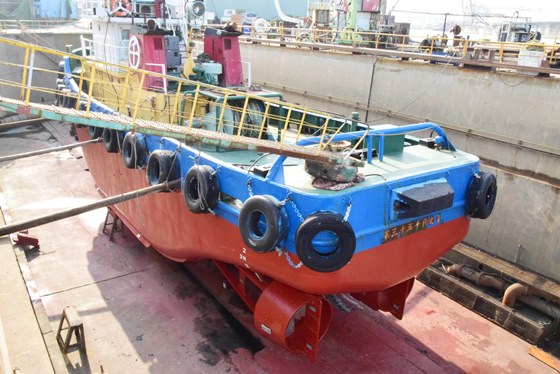

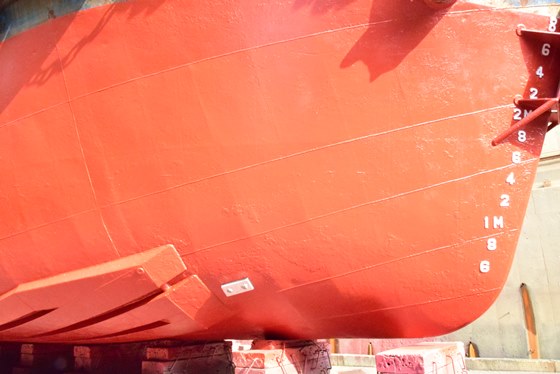

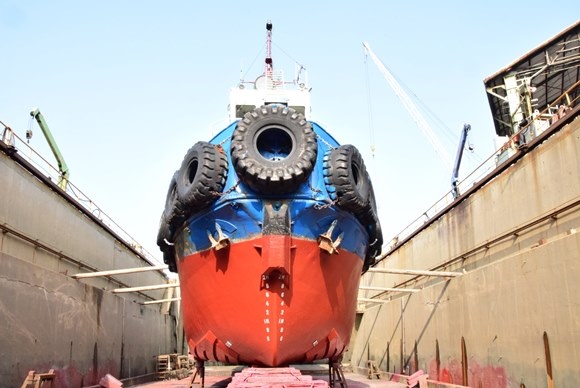

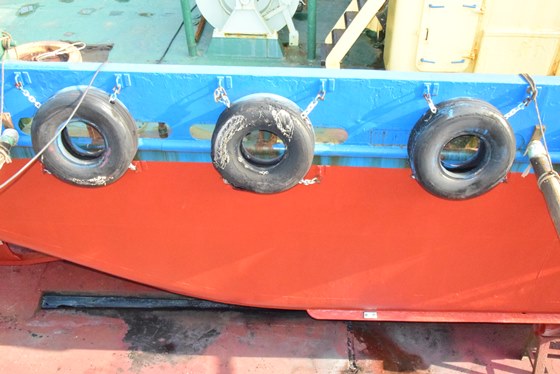

http://img.gg/258y9Lq DRYDOCKING-23 JAN. 2018
http://img.gg/NzpWl9o MOVIE-2 MARCH, 2018
http://img.gg/lNmrH39 PHOTO-2 MARCH, 2018
