CODE NO. WT-395FB OF USED FLOATING CRANE VESSEL LIFTING CAPACITY 180 TONS(M/V. NISSHIN MARU)


WE CAN SUPPLY (SELF-PROPELLED)

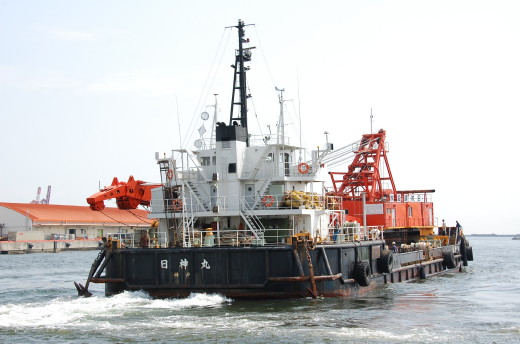

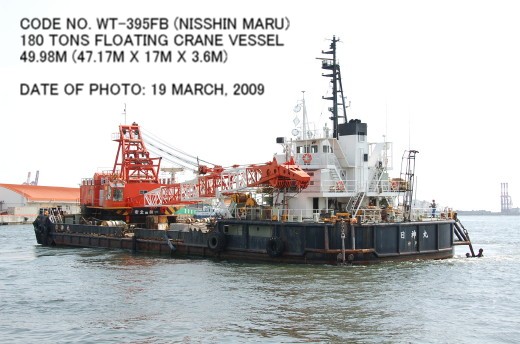

CODE NO. WT-395FB OF USED FLOATING CRANE VESSEL LIFTING CAPACITY 180 TONS(M/V. NISSHIN MARU)
MADE IN 1980 WITH ONE SMALL CREW BOAT.

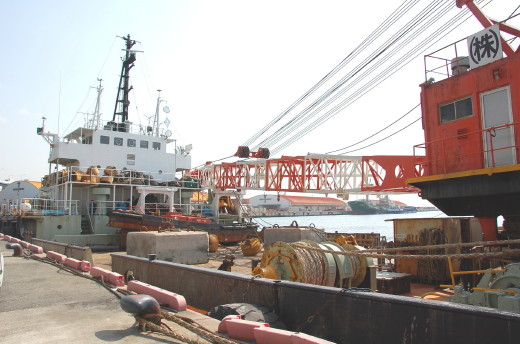

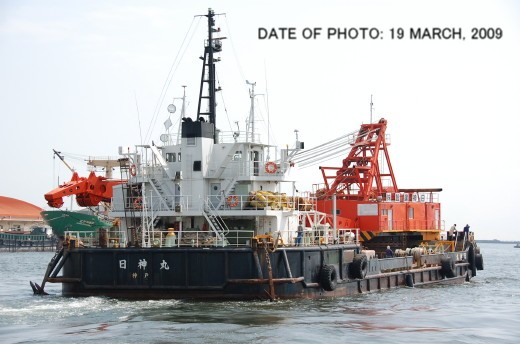

SPECIFICATIONS OF FLOATING CRANE .VESSEL* M/V. NISSHIN MARU
============================================================
LENGTH OVERALL:                               49.98M
REGISTERED LENGTH:                          47.17M
REGISTERED BREADTH:                        17.00M
REGISTERED DEPTH:                            3.60M
DRAFT:                                                3.10M
GROSS TONNAGE:                               698.44 TONS
BUILDER OF SHIP:                               MITSUBISHI HEAVY INDUSTRIES, LTD. JAPAN
YEAR OF BUILT:                                   1980 (STILL GOOD WORKING CONDITION)

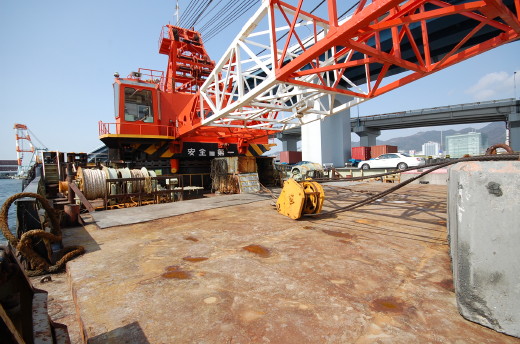

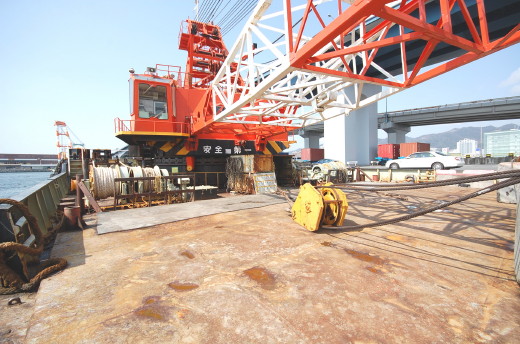

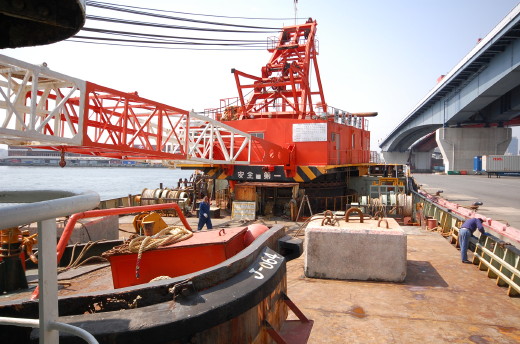

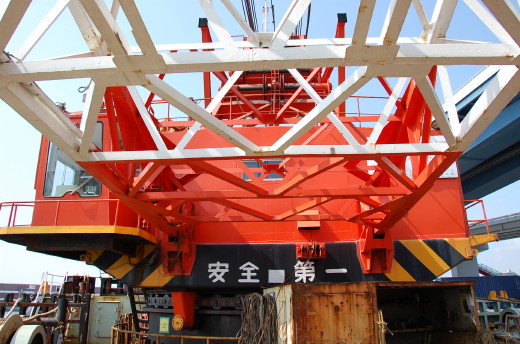

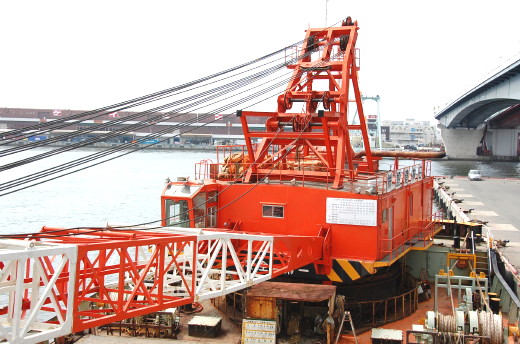

MAKER & MODEL OF CRANE:                 SKK-1600DT-B
MAX. LOAD CAPACITY OF CRANE:        180 TONS

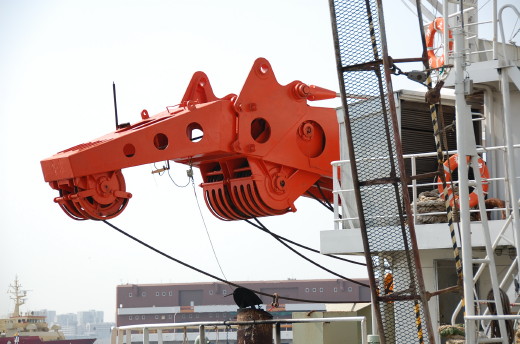

HOOK:                                                180 TONS & 80 TONS & 30 TONS
MAKER & MODEL OF CRANE ENGINE:    "NIIGATA" 6L22LX (1100PS/900RPM)
CRANE REVOLVING:                            360 DEGREE

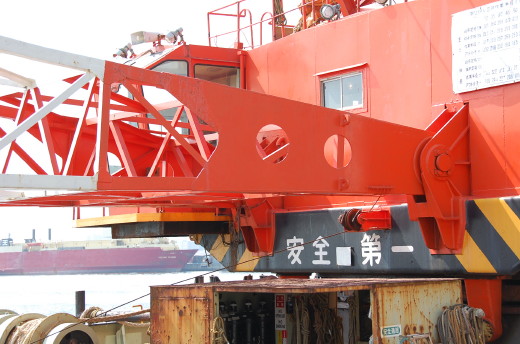

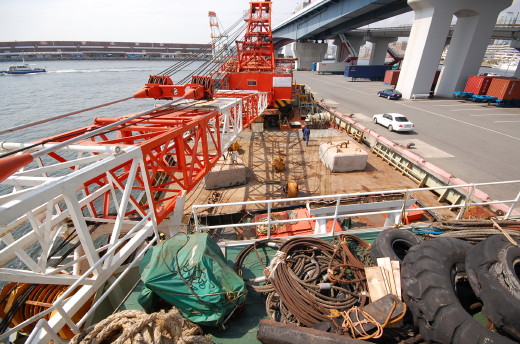

BOOM LENGTH:                                   31M
BOOM WORKING ANGLE:                       30 DEGREE ~ 80 DEGREE

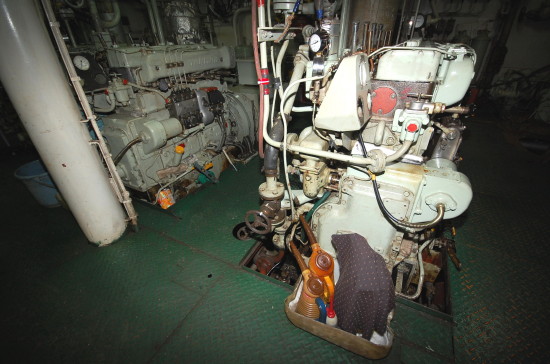

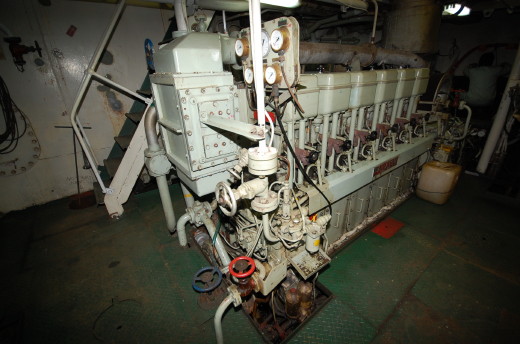

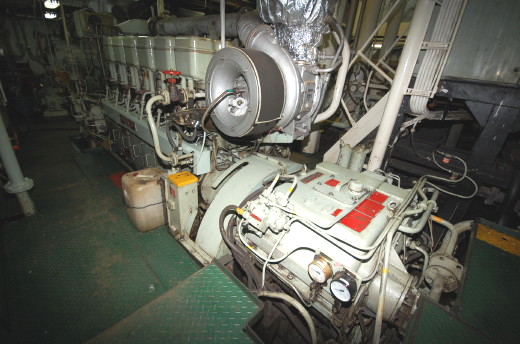

MAIN ENGINE:                                      "DAIHATSU" 6DS6M-22SL (750PS/900RPM) X 2 ENGINES = 1500PS
AUXILIARY GENERATOR:                      "YANMAR" 4KDL (95PS/1200RPM/AC225V) WITH 60KVA GENERATOR X 2 UNITS
AUXILIARY GENERATOR:                      "YANMAR" 5KDL (115PS/1200RPM/AC225V) WITH 60KVA GENERATOR X 1 UNIT
DEPTH OF DREDGING:                           50M
FUEL OIL TANK CAPACITY:                    169.4M3
WATER TANK CAPACITY:                       125.6M3

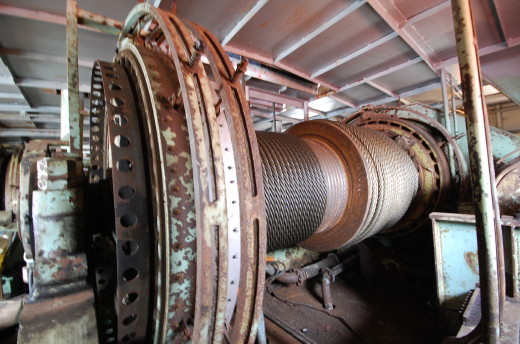

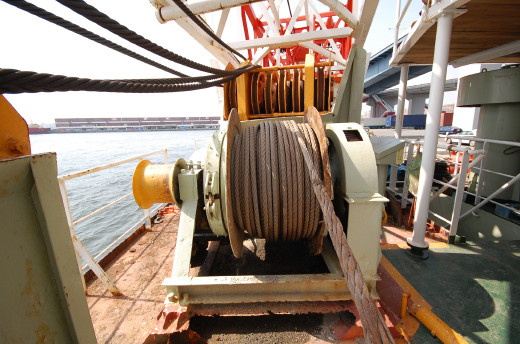

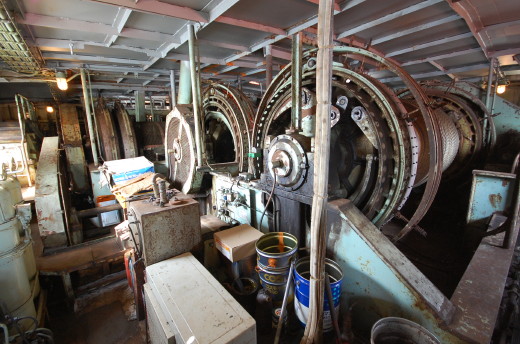

WINCH:                                                  4 UNITS

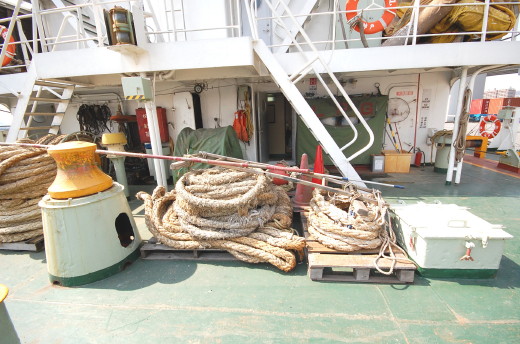

WINDLASS:                                             2 UNITS
ANCHOR:                                               4 UNITS

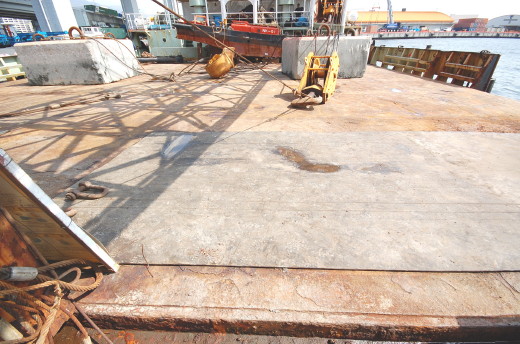

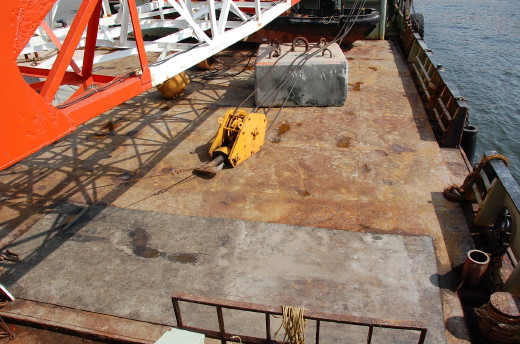

DEAD WEIGHT OF CARGO HOLD:             800 TONS

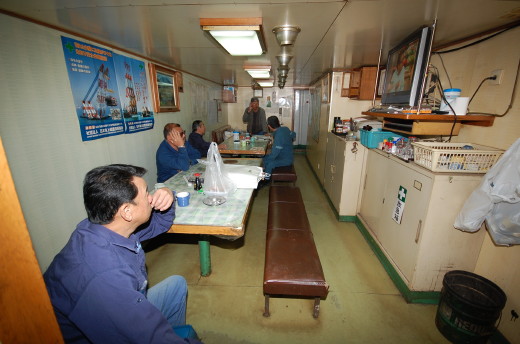

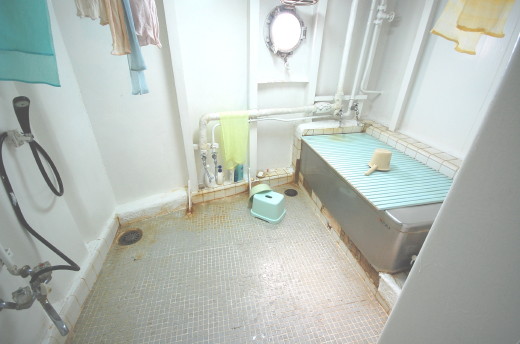

CREW ROOM:                                       11 ROOMS (13 BEDS)
SPEED:                                                9 KNOTS
