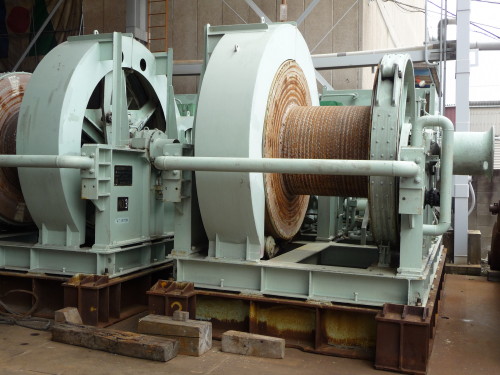

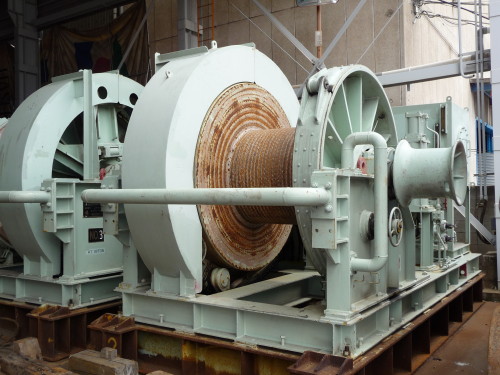

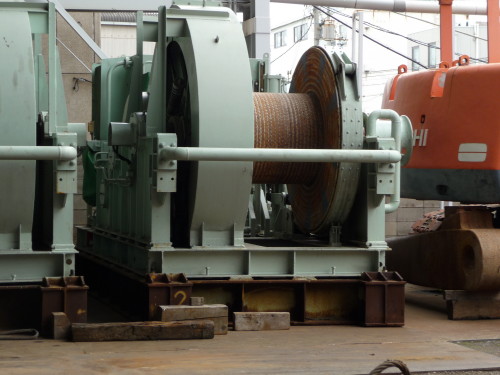

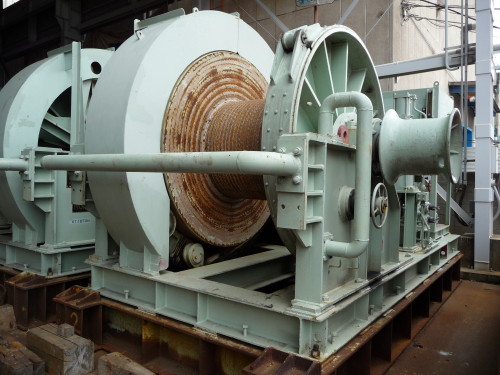

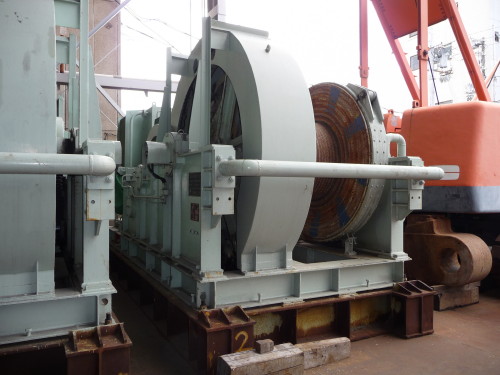

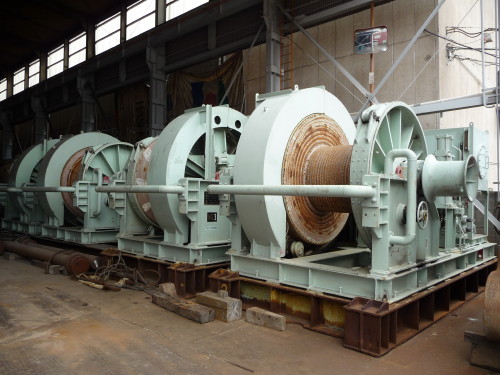

4 UNITS OF "NITCHITSU" WINCHES (CAPACITY 30 TONS) AND ONE REMOTE CONTROLLER
WE CAN SUPPLY

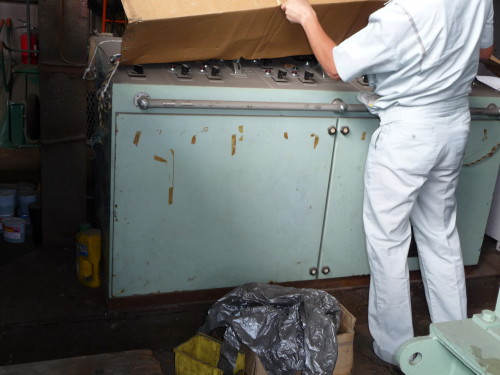

4 UNITS OF USED "NITCHITSU" WINCHES (CAPACITY 30 TONS) AND ONE REMOTE CONTROLLER FOR 4 WINCHES.
SPECIFICATIONS OF WINCH

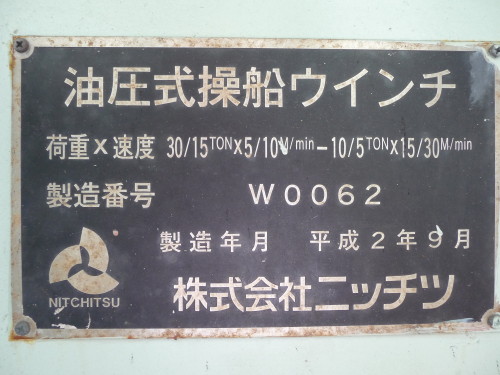

RATED LOAD 30/15TON X 5/10M/MIN. 10/5TON X 15/30M/MIN.
RATED SPEED 0 TO 5M/MIN./0 TO 10M/MIN. 0 TO 15M/MIN./0 TO 30M/MIN.
RATED POINT PCD 1112,5MM AT 3 LAYERS
WIRE DIAMETER X LENGTH 42.5MM DIAMETER X 400M LENGTH

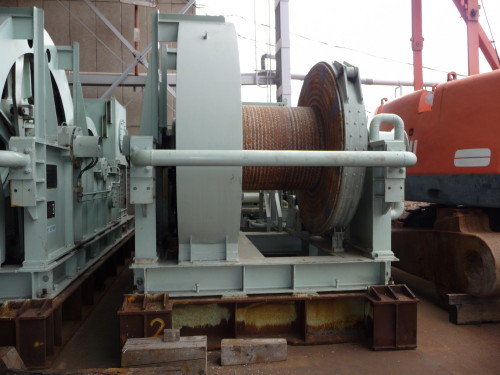

DRUM DIMENSIONS 900MM DIAMETER X 900MM LENGTH X 1815MM DIAMETER
BRAKE CAPACITY 45 TONS
CLUTCH CAPACITY 30 TONS
REDUCTION GEAR RATIO 1/26.7

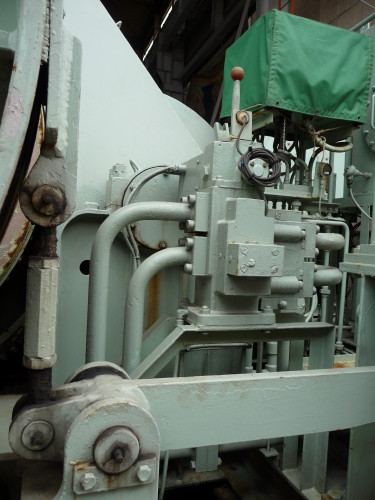

HYDRAULIC PUMP UNIT MODEL "UCHIDA" BRAND MODEL UMRH2-3150-9-PW
HYDRAULIC PUMP PRESSURE 170/85KG/CM2 170/85KG/CM2
HYDRAULIC PUMP RPM 38.2/76.4RPM 114.6/229.2RPM
OIL VOLUME 127/254L/MIN. 127/254L/MIN.

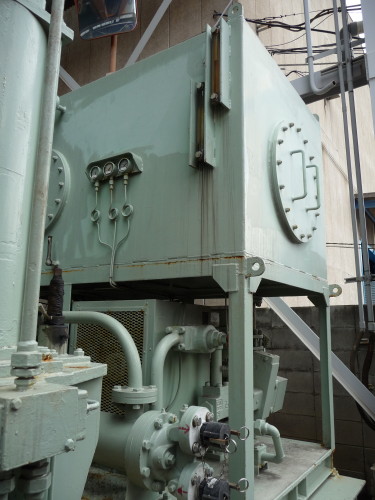

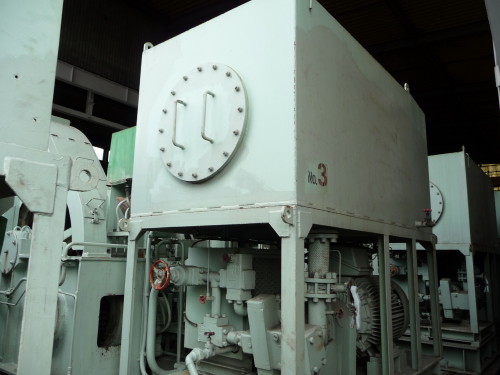

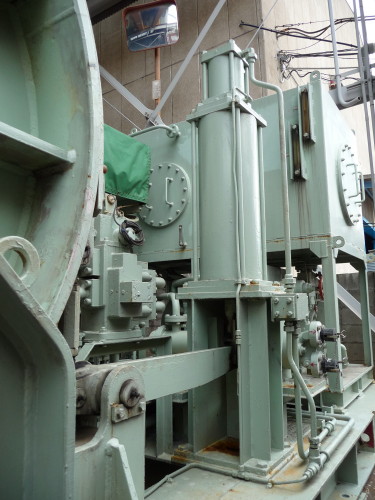

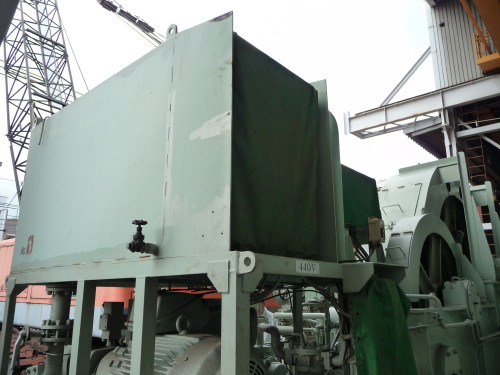

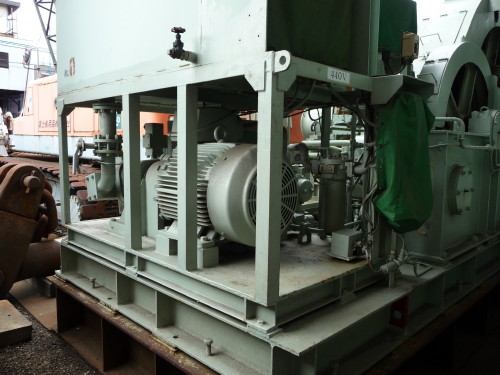

SPECIFICATIONS OF ELECTRO-HYDRAULIC POWER PUMP UNIT

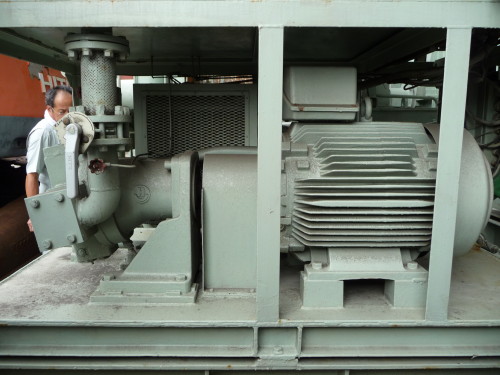

MOTOR: 55KW/6 POLE/1160RPM/AC440V/60HZ. OR AC400V/50HZ.
HYDRAULIC PUMP: "UCHIDA" MODEL A7V250LV./1160RPM/195/110KG/CM2.(PRESSURE)/127/254L/MIN.(OIL DSCHARGE).
