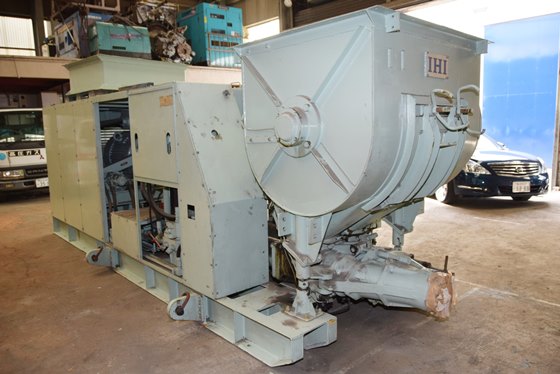

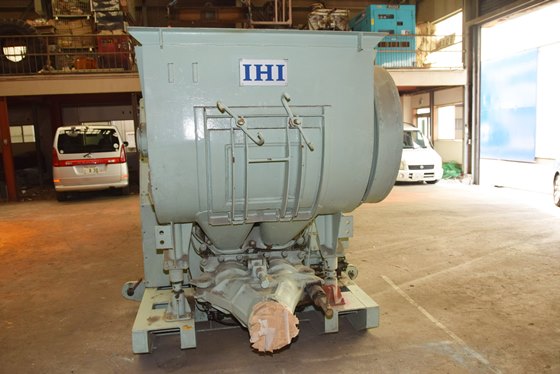

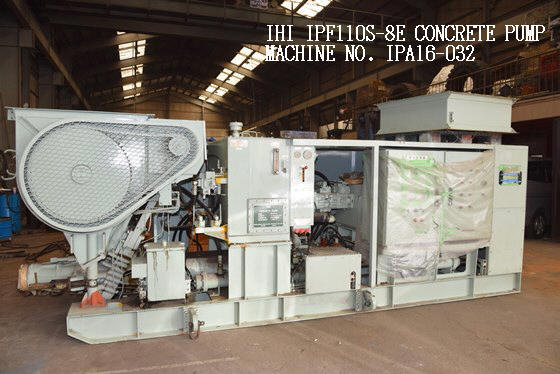

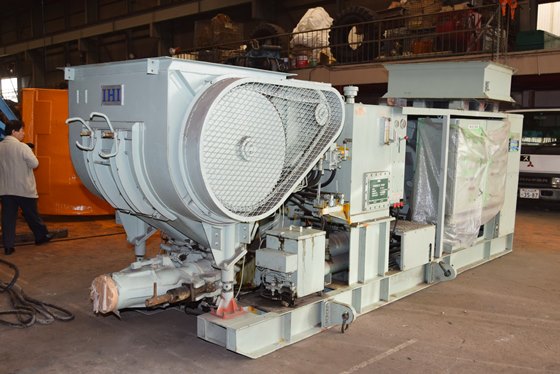

"IHI" MODEL IPF110S-8E STATIONARY TYPE CONCRETE PUMP S/NO. IPA16-032


WE CAN SUPPLY

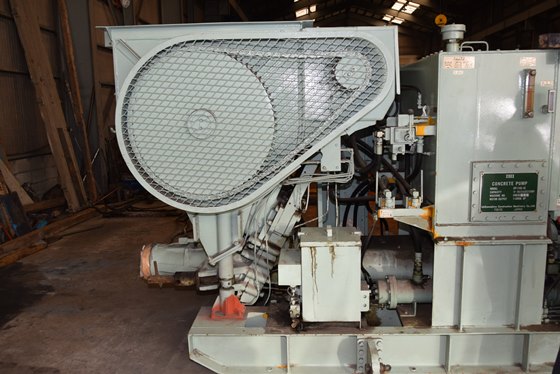

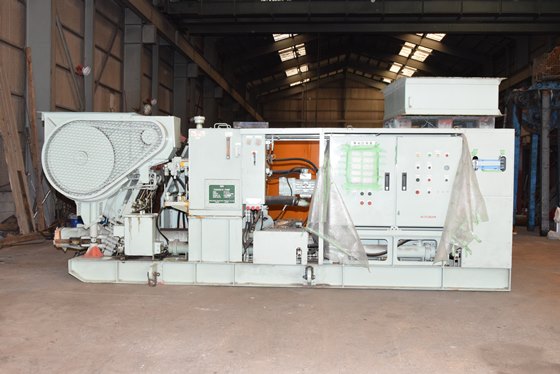

USED (SEMI-OVERHAULED) "IHI" MODEL IPF110S-8E STATIONARY TYPE CONCRETE PUMP S/NO. IPA16-032 CAPACITY 10 TO 95M3/HOUR
WITH MOTOR OUTPUT 110KW, 4 POLE.

TYPE: HIGH PRESSURE & LOW PRESSURE CHANGEABLE PISTON TYPE

                                             *USUALLY PRESSURE     *HIGH PRESSURE
DISCHARGE CAPACITY                          10 TO 95M3/HOUR            5 TO 55M3/HOUR
CONCRETE PISTON FRONT PRESSURE  53.8KG/CM2                     82.5KG/CM2

DISCHARGE DISTANCE               VERTICAL  HORIZONTAL  VERTICAL  HORIZONTAL
200MM DIAMETER                                166M            1450M                260M         2210M
150MM DIAMETER                                145M             850M                 230M        1300M
125MM DIAMETER                                125M             590M                 205M          900M

MAXIMUM AGGREGATE (STONE) SIZE
200MM DIAMETER  50MM
150MM DIAMETER  40MM
125MM DIAMETER  30MM

CONCRETE SLUMP: 5 TO 23CM

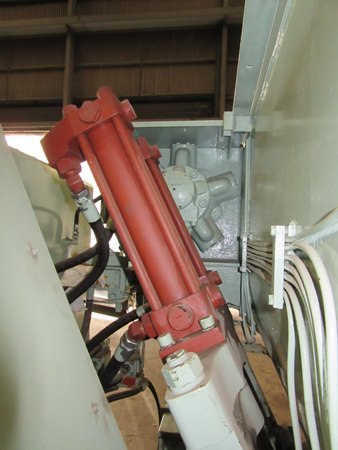

CYLINDER DIAMETER X STROKE: 205MM X 1400MM
CYLINDER QUANTITY: 2

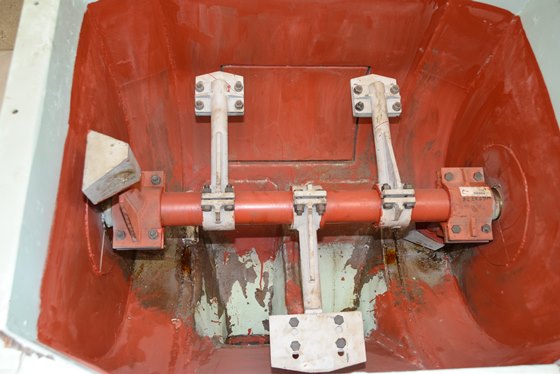

HOPPER CAPACITY X HEIGHT: 1.5M3 X 2460MM

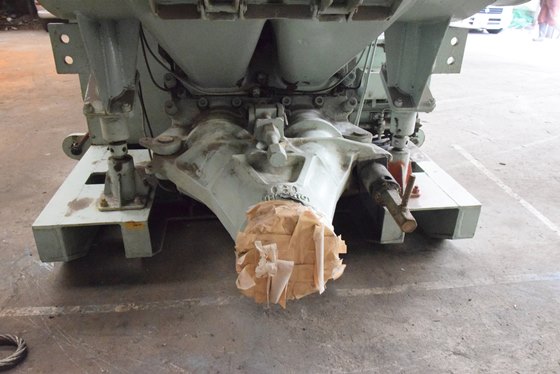

DISCHARGE OPENING: 180MM

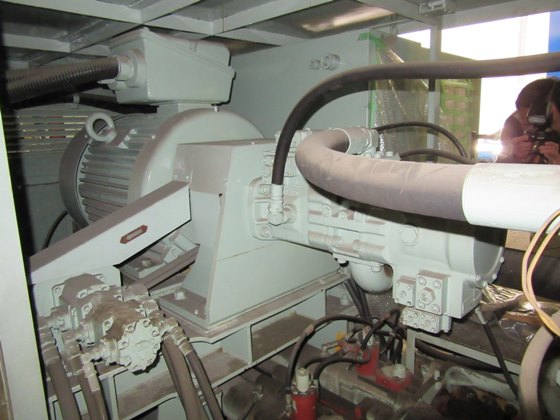

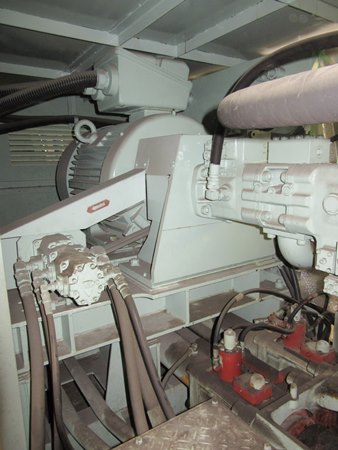

MOTOR: 110KW. 4 POLE
FREQUENCY: 3 PHASE. 50HZ/200V. 60HZ/220V.
DIMENSIONS: 5400MM X 1600MM X 2320MM
WEIGHT: 8200KGS

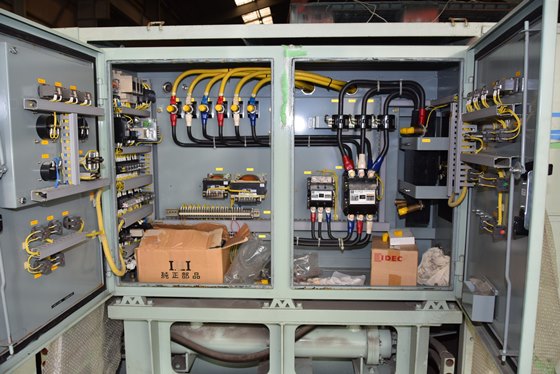

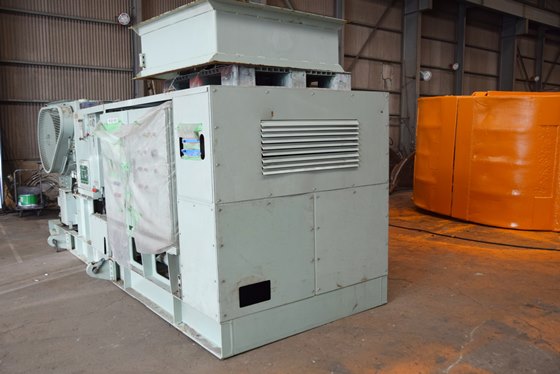

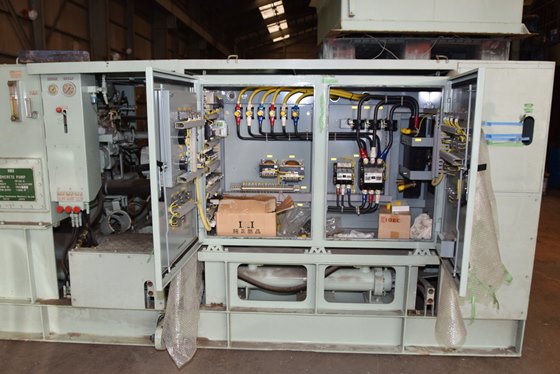

PLEASE CLICK PHOTO TO ENLARGE
