STOCK LIST

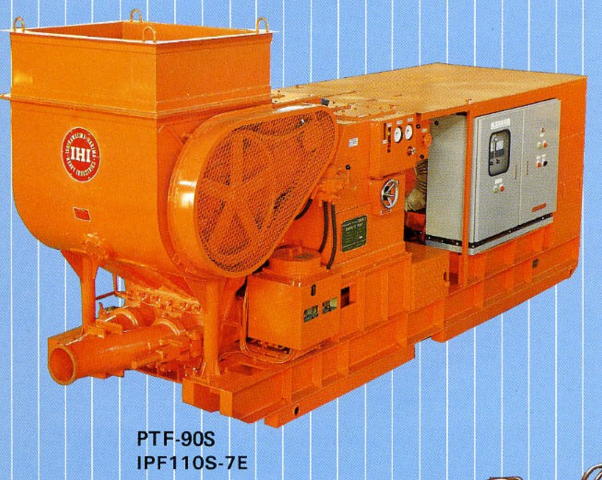

"IHI" MODEL IPF110S-7E STATIONARY TYPE CONCRETE PUMP CAPACITY 10 ~ 95M3/HOUR

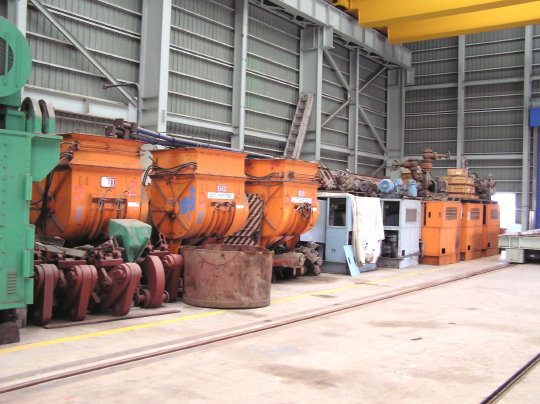

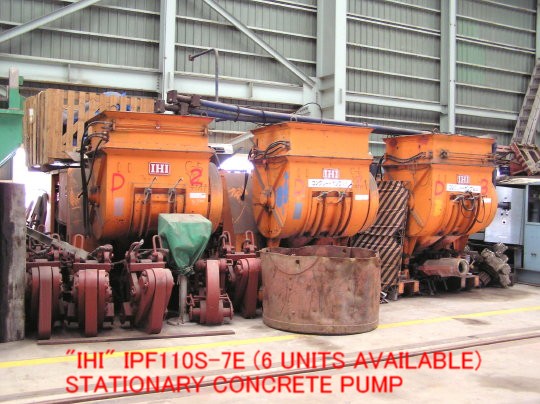

WE CAN SUPPLY 6 UNITS OF

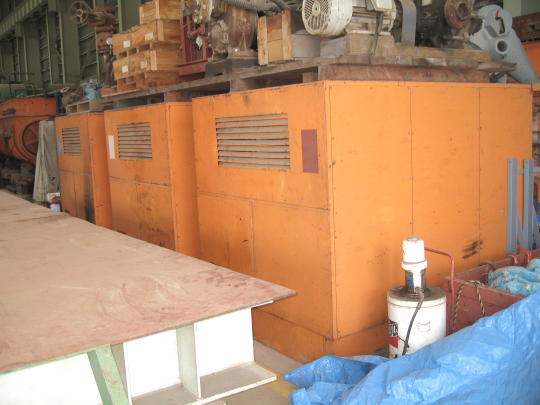

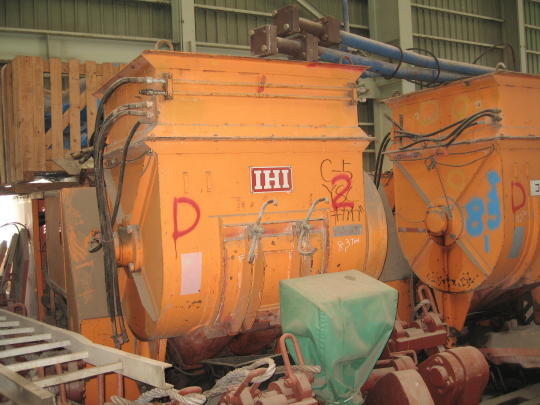

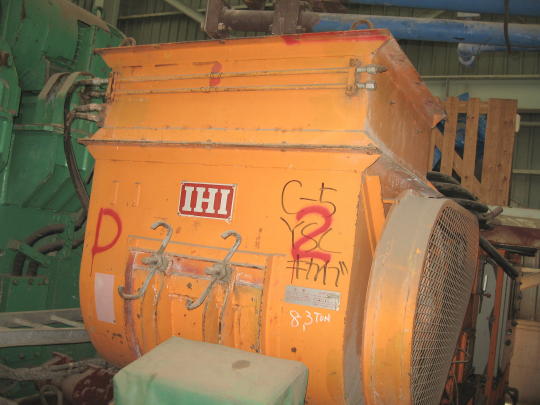

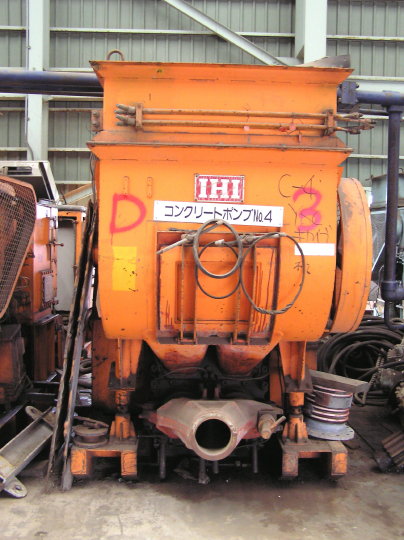

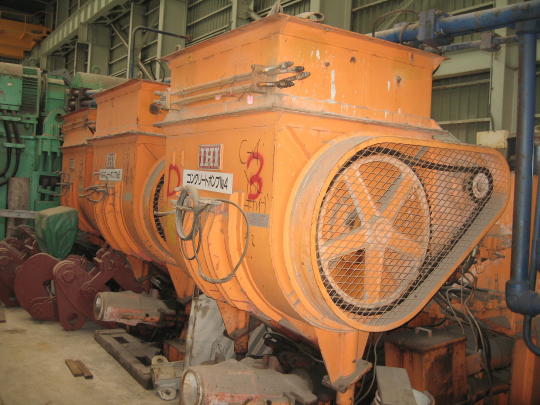

USED "IHI" MODEL IPF110S-7E STATIONARY TYPE CONCRETE PUMP CAPACITY 10 ~ 95M3/HOUR
WITH MOTOR OUTPUT 110KW, 4 POLE.

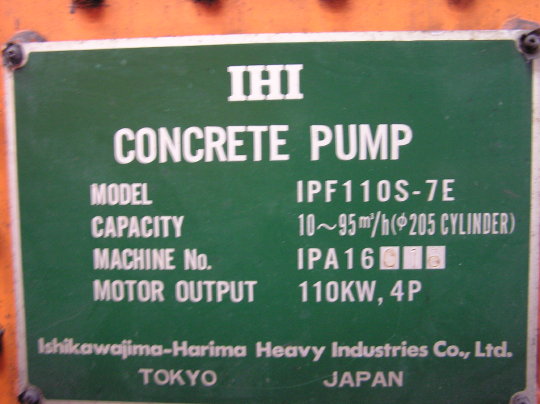

MACHINE NO. IPA16011, IPA16012, IPA16013, IPA16014, IPA16015 & IPA16016 (6 UNITS AVAILABLE)

*PLEASE OPEN "PDF" FILES

TYPE: HIGH PRESSURE & LOW PRESSURE CHANGEABLE PISTON TYPE

                                             *LOW PRESSURE         *HIGH PRESSURE
OUTPUT                                                15 ~ 110M3/H                     10 ~ 75M3/H
CONCRETE PISTON FRONT PRESSURE  46KG/CM2                         71.8KG/CM2

TRANSPORTATION DISTANCE     VERTICAL  HORIZONTAL  VERTICAL  HORIZONTAL
150MM DIAMETER                                125M             740M                205M         1160M
125MM DIAMETER                                105M             520M                180M           800M
100MM DIAMETER                                  75M             310M                140M          480M

MAXIMUM AGGREGATE SIZE
150MM DIAMETER  50MM
125MM DIAMETER  40MM
100MM DIAMETER  30MM

CONCRETE SLUMP: 5 ~ 23CM
CYLINDER DIAMETER X STROKE: 220MM X 1400MM
CYLINDER QUANTITY: 2
HOPPER CAPACITY X HEIGHT: 1.5M3 X 2460MM
MOTOR: 110KW. 4 POLE
FREQUENCY: 3 PHASE. 50HZ/400V. 60HZ/440V.
DIMENSIONS: 5400MM X 1600MM X 2320MM
WEIGHT: 8200KGS

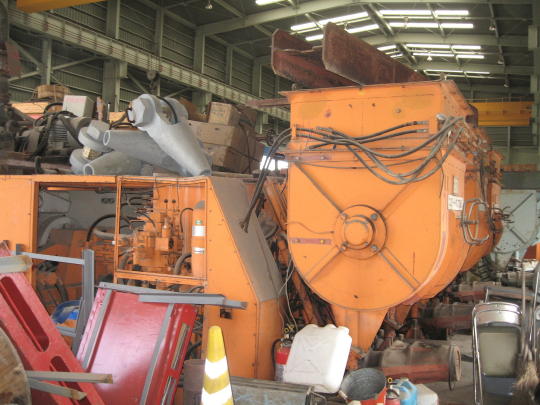

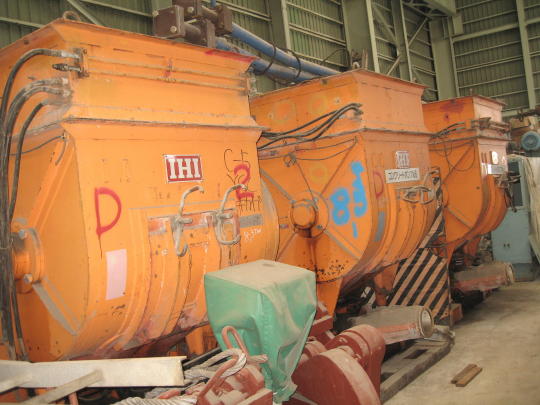

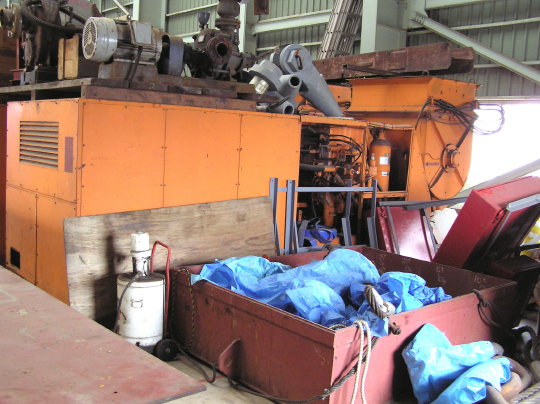

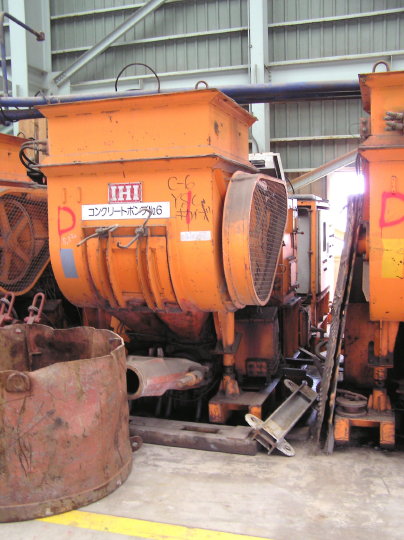

PLEASE CLICK PHOTO TO ENLARGE
