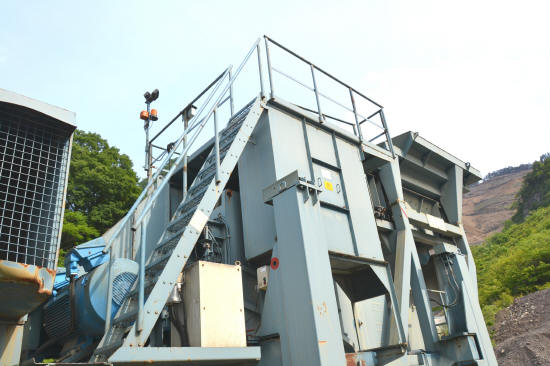

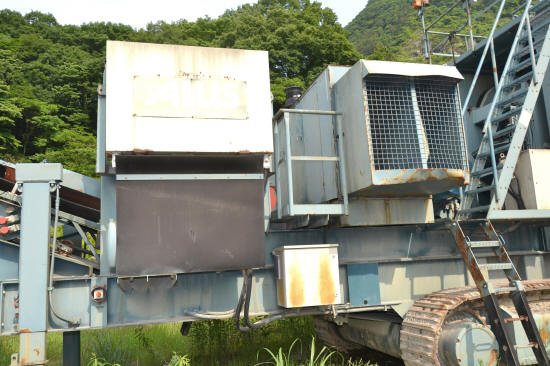

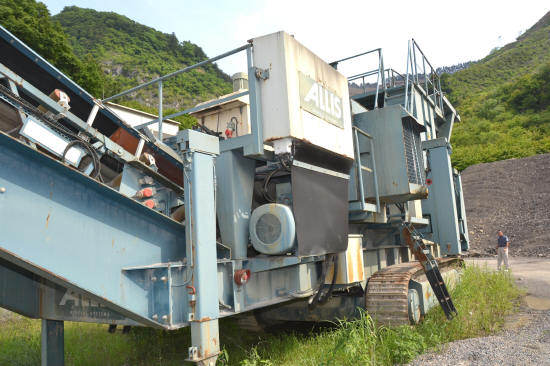

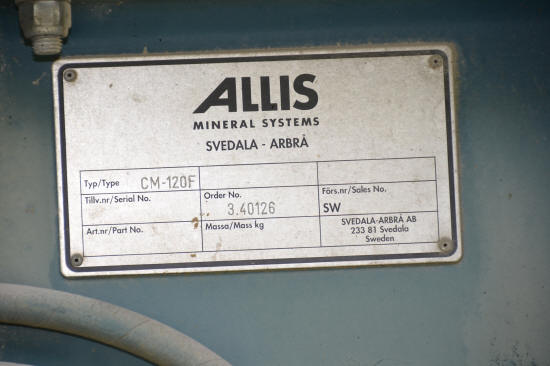

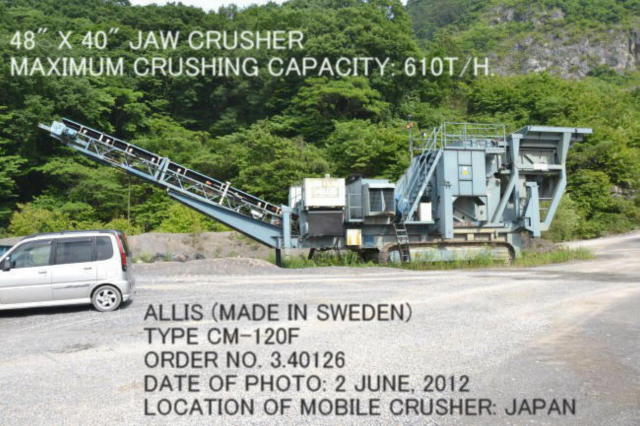

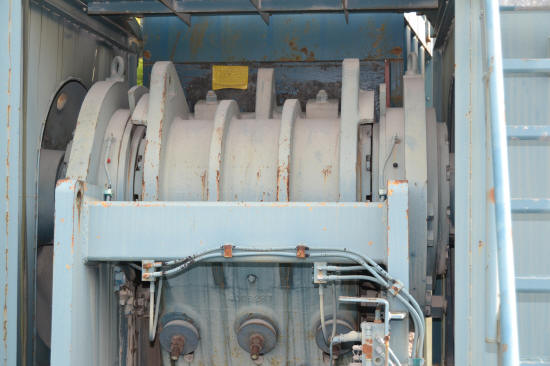

"ALLIS" SVEDALA-ARBRA TYPE CM-120F (48" X 40") MOBILE CRUSHER ORDER NO. (S/NO.) 3.40126. (MADE IN SWEDEN)


WE CAN SUPPLY

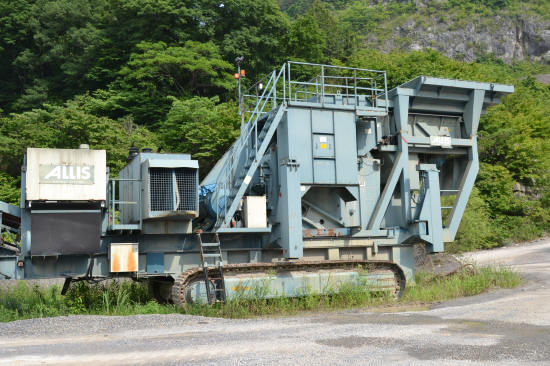

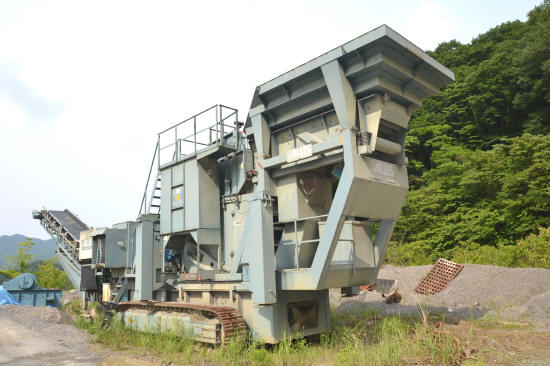

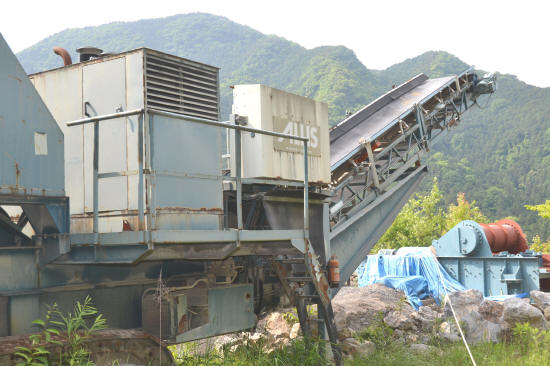

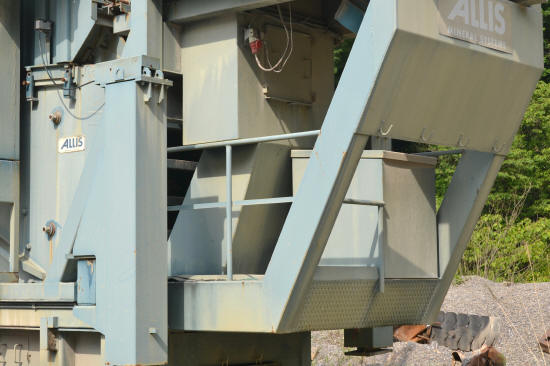

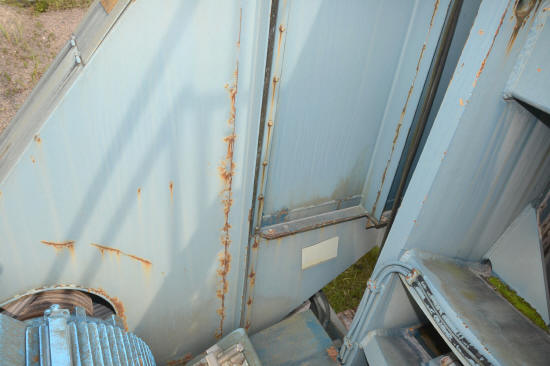

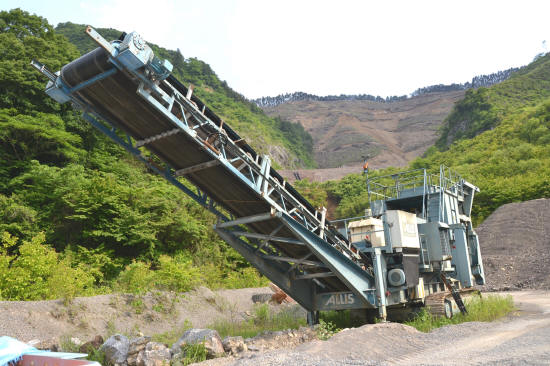

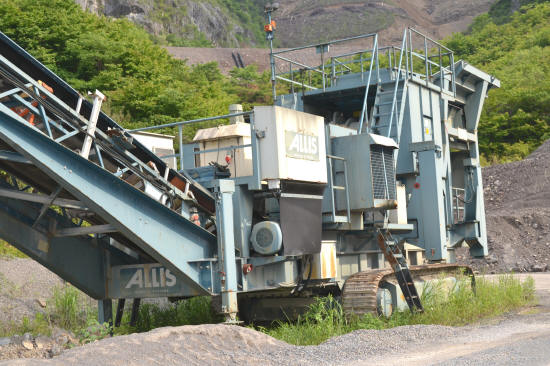

USED "ALLIS" SVEDALA-ARBRA TYPE CM-120F (48" X 40") MOBILE CRUSHER ORDER NO. (S/NO.) 3.40126. (MADEIN SWEDEN).
THIS MOBILE CRUSHER ONLY USED ABOUT 3 HOURS.
MAXIMUM CRUSHING CAPACITY: 610T/H.
*LOCATION OF MOBILE CRUSHER: JAPAN.

SPECIFICATIONS

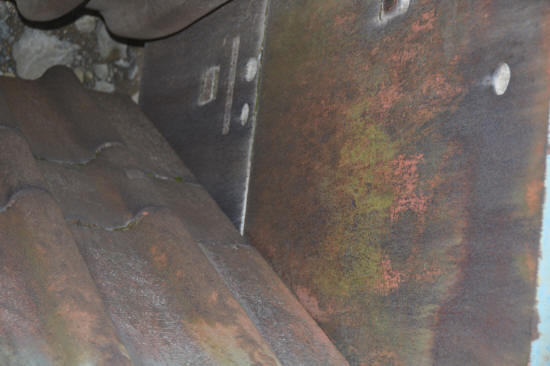

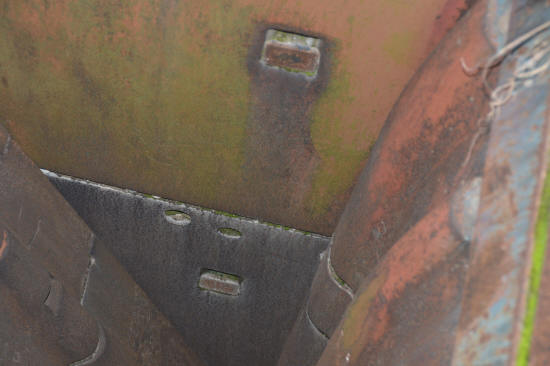

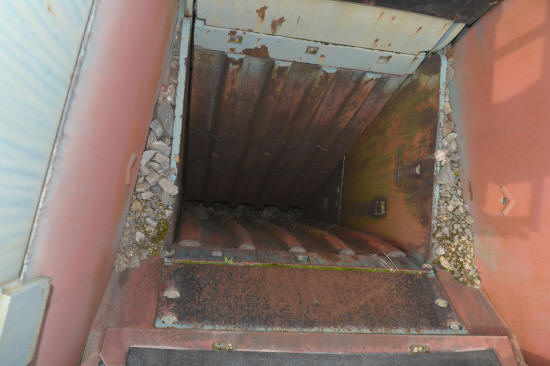

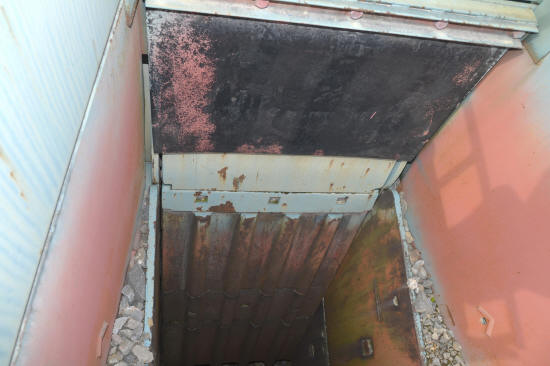

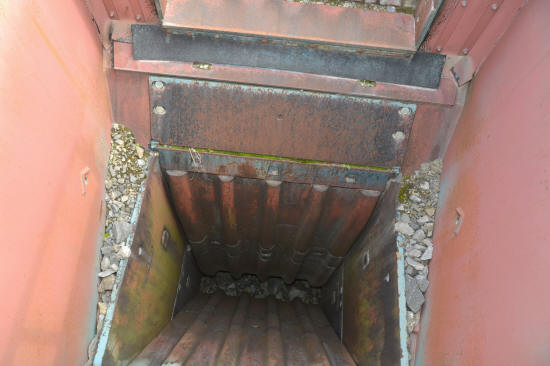

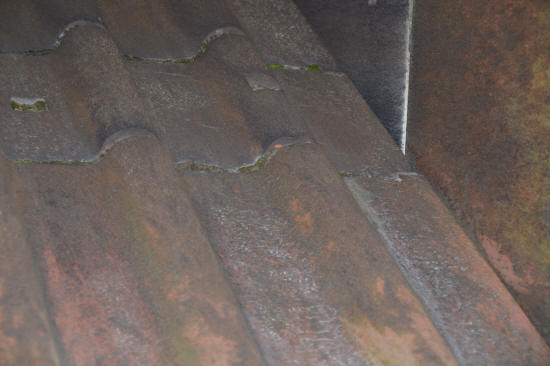

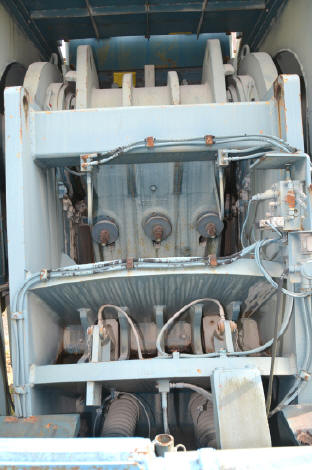

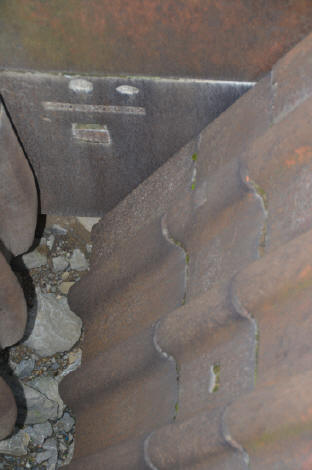

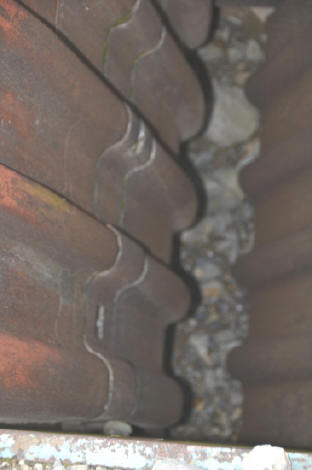

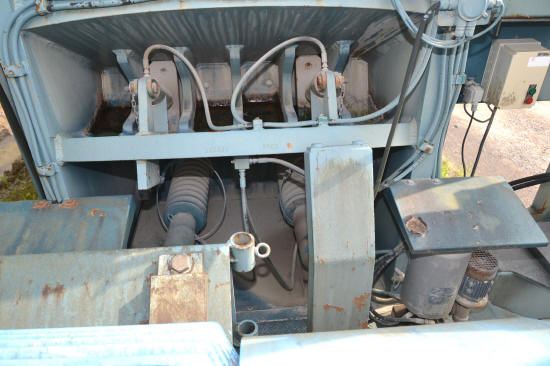

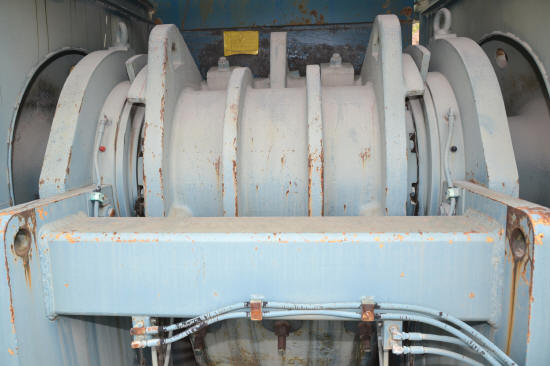

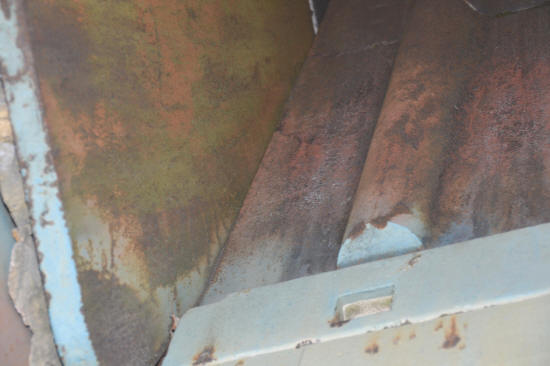

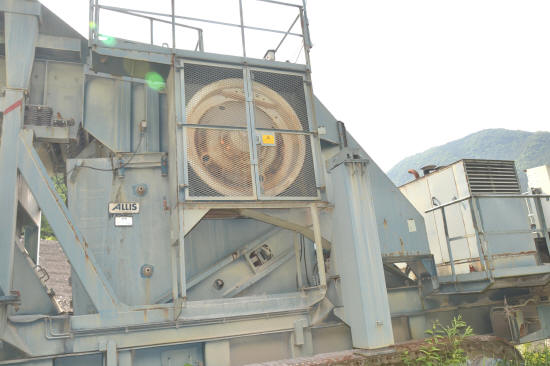

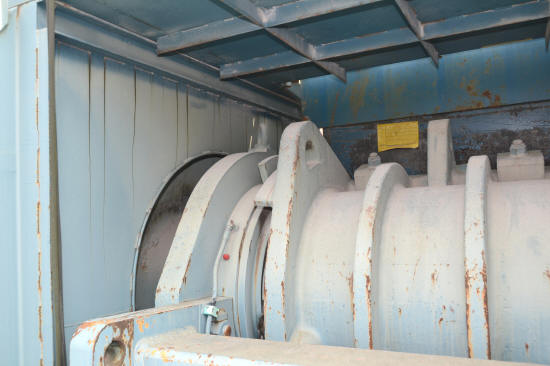

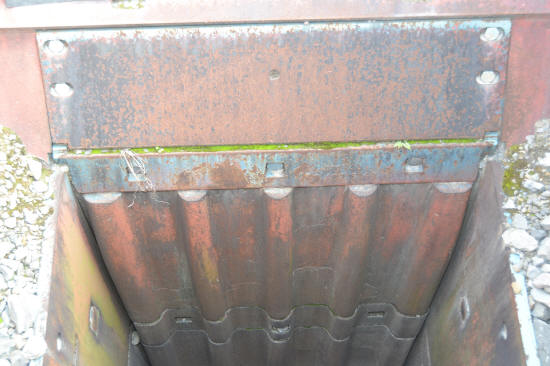

JAW CRUSHER: 48" X 40" (1200MM X 1020MM)
MAXIMUM FEED MATERIAL: 1100MM X 900MM X 900MM

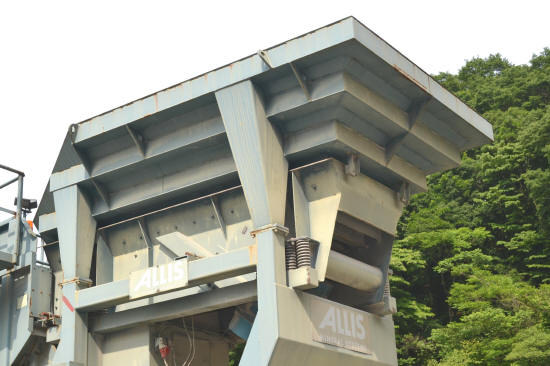

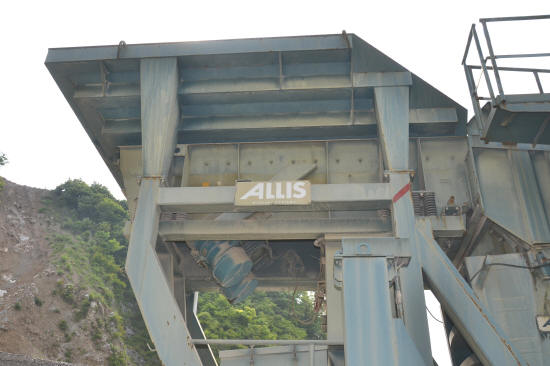

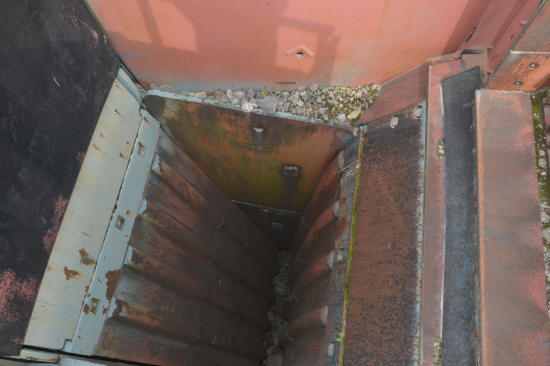

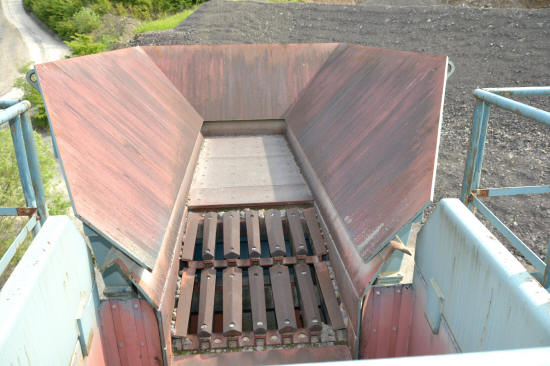

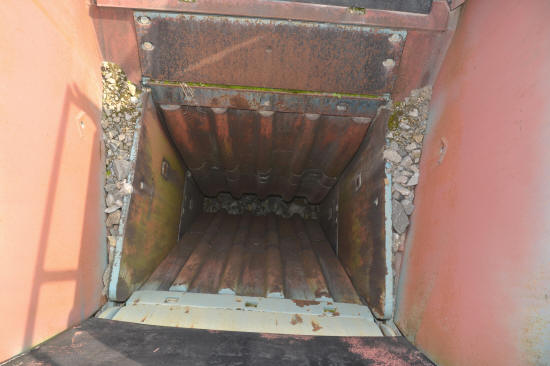

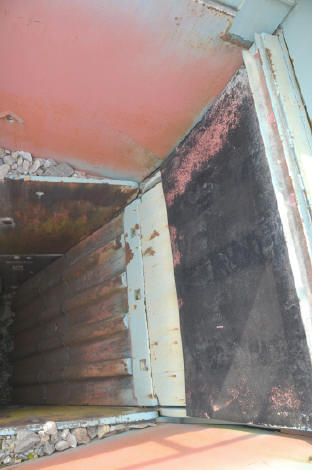

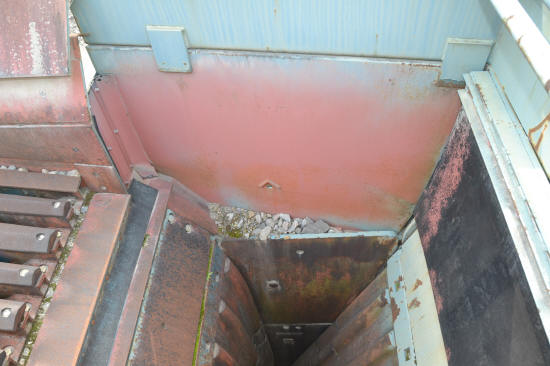

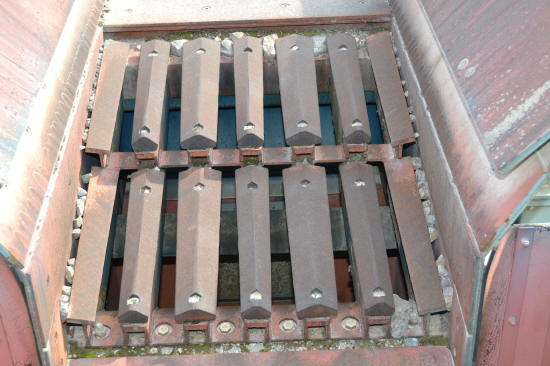

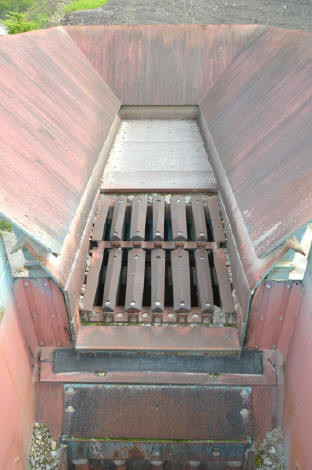

HOPPER: 4780MM X 3010MM X 820MM (ABOUT 10M3)
HEIGHT OF FEEDER (LOADING HEIGHT OF HOPPER) : 6.3M FROM THE GROUND

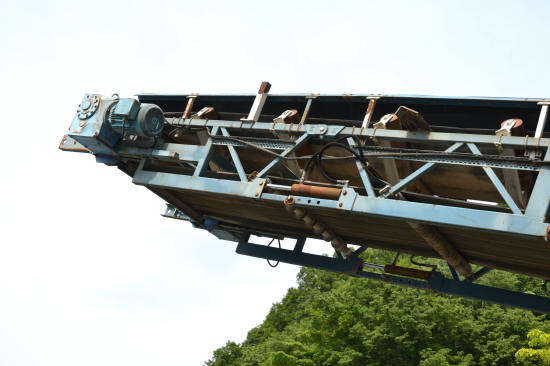

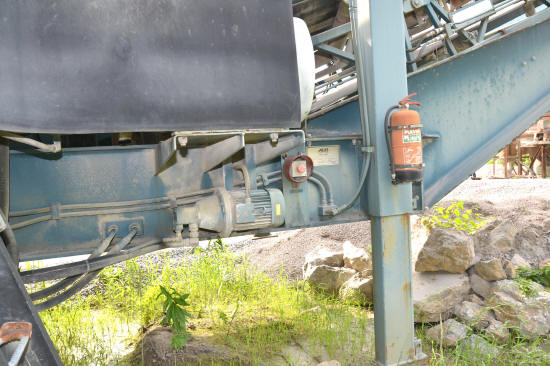

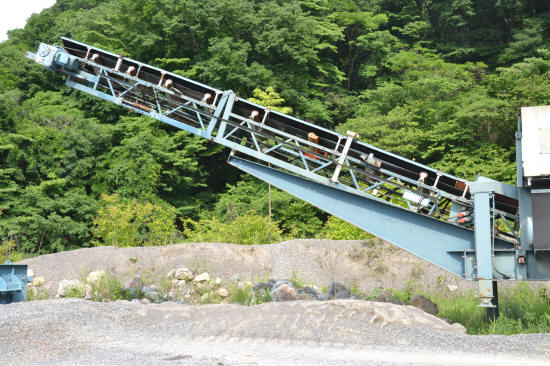

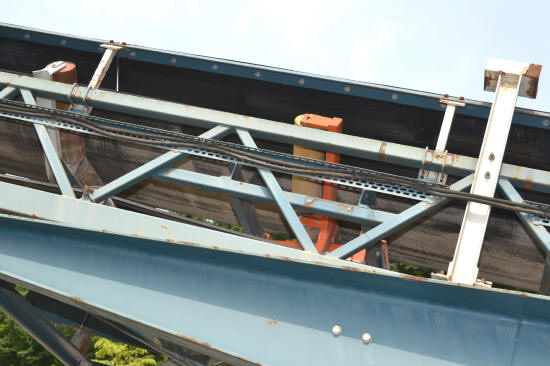

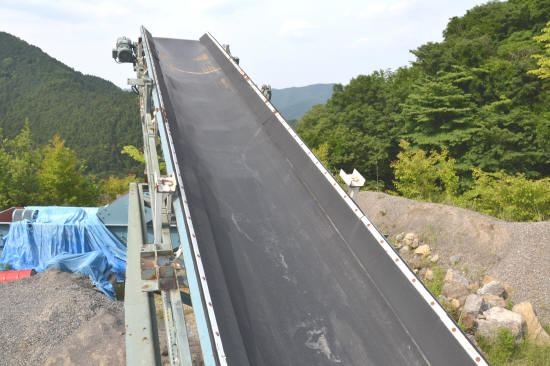

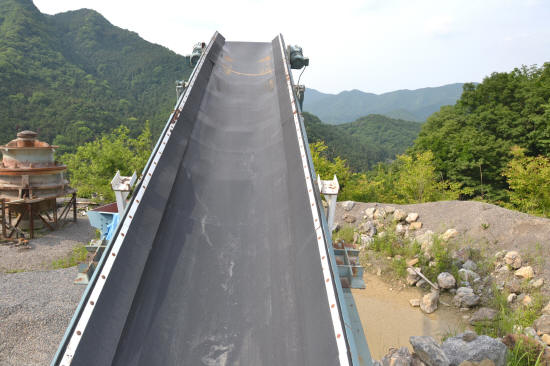

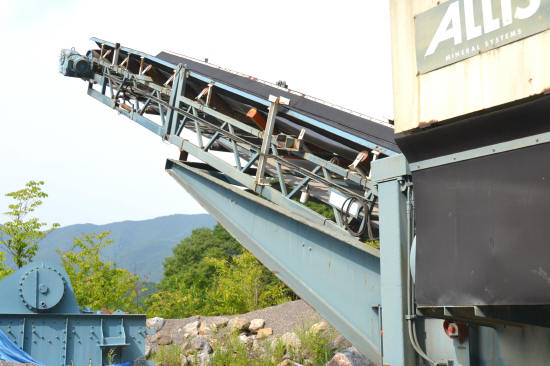

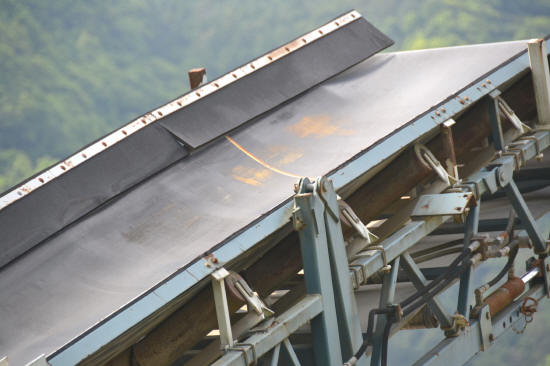

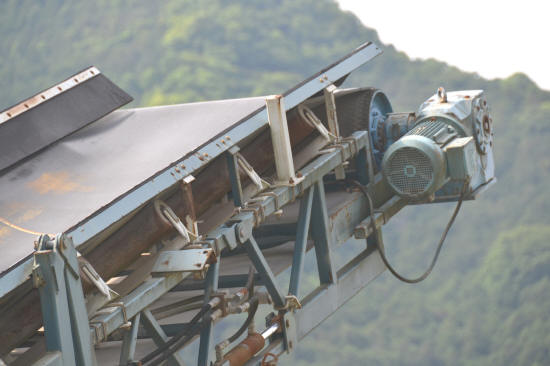

CONVEYOR SIZE & CAPACITY: 1.3M X 19M (800T/H)
HEIGHT OF CONVEYOR: 5.5M
BELT SCALE: ONE

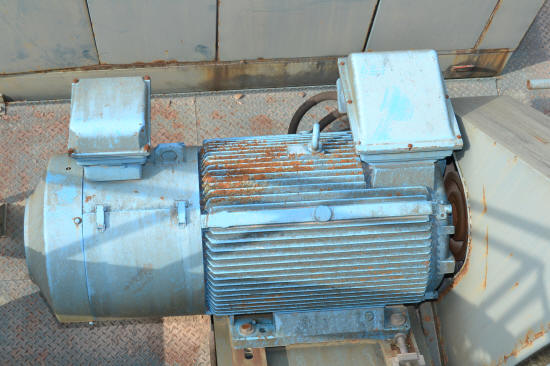

DIESEL GENERATOR: STANFORD 300KVA/380V/50HZ. (320KVA/440V/60HZ)

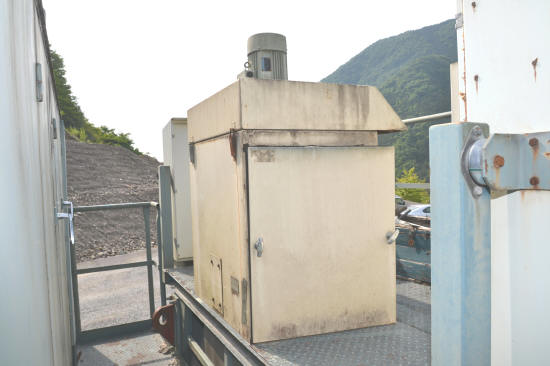

DUST COLLECTOR: ONE

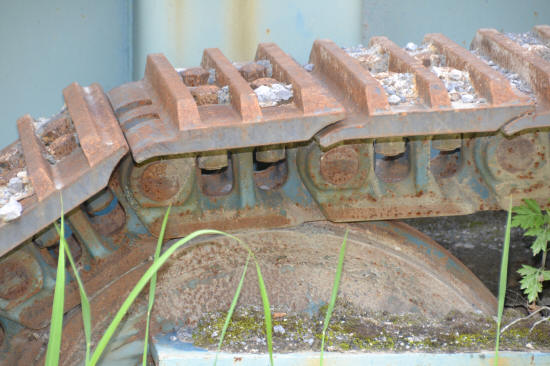

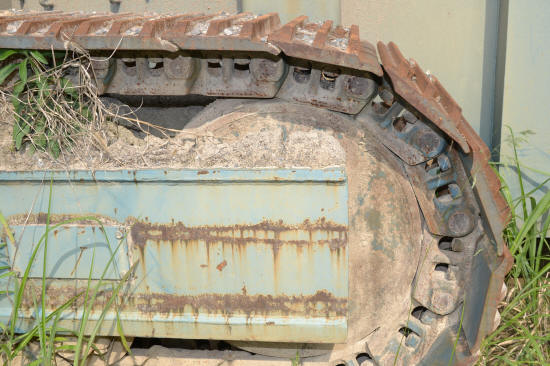

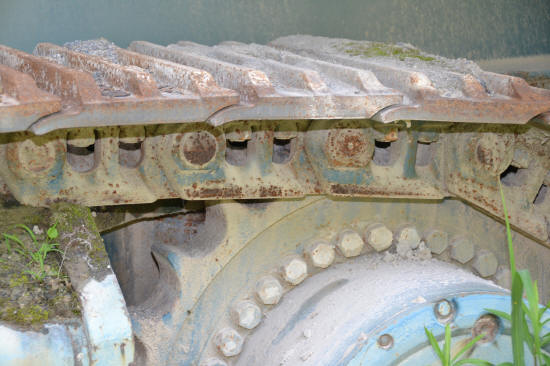

TRAVELLING SPEED: 16M/MINUTE

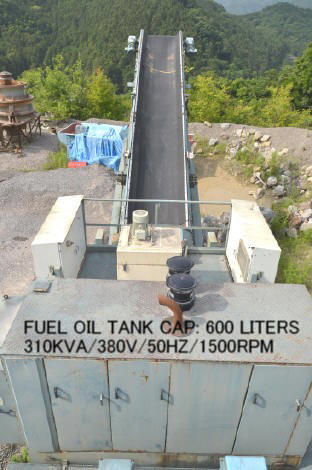

FUEL OIL TANK CAPACITY: 600 LITERS
TOTAL WEIGHT: 110 TONS


PLEASE CLICK PHOTO TO ENLARGE
